NAD Hybrid Digital DAC Amplifier 2x60W

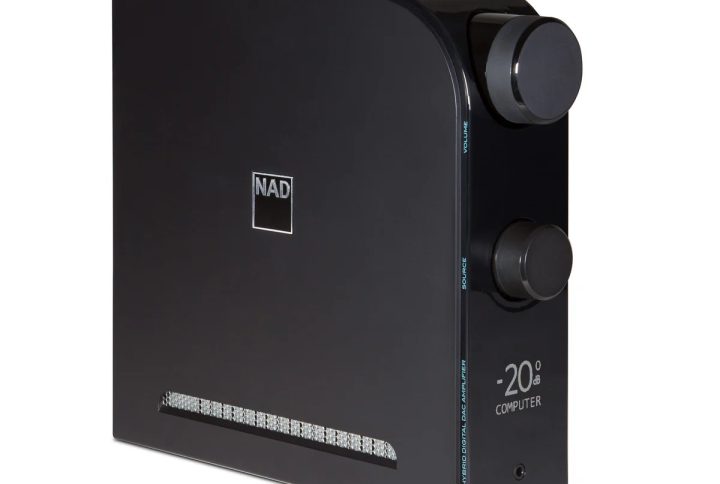

The NAD D 3045 HybridDigital DAC Amplifier is a compact, versatile amplifier designed to deliver clear, controlled sound from modern music and TV sources. With 60 watts per channel of HybridDigital amplification, it offers confident performance in smaller spaces without sacrificing detail or dynamics. HDMI ARC, USB high-resolution playback, Bluetooth with aptX HD, and a built-in phono stage ensure seamless connectivity across digital and analogue sources. Thoughtful features like a headphone output and subwoofer support make it a flexible, future-ready solution for everyday listening.
Available with Professional installation in NY, NJ, and CT – Powered by Sound Waves .
The NAD D 3045 HybridDigital DAC Amplifier is designed for listeners who want clear, confident sound from a compact system.
With HybridDigital amplification, high-resolution digital support, and versatile connectivity, it adapts easily to modern music and TV setups without adding complexity.
Key Features
- 60W per channel HybridDigital amplification
- HDMI ARC for TV integration
- USB input supporting up to 24-bit/192kHz playback
- MQA and DSD support from compatible sources
- Bluetooth with aptX HD for wireless streaming
- Moving Magnet phono input with RIAA equalisation
- Optical and coaxial digital inputs
- Pre-out and subwoofer output
- Dedicated headphone amplifier
- Compact, efficient design with low standby power
Designed for Compact Living Spaces
The D 3045 fits easily into smaller systems, from living rooms to desktop setups.
Its compact design allows high-quality sound without requiring large components.
HybridDigital Power with Control
With 60 watts per channel, the D 3045 delivers clean, controlled sound across a wide range of speakers.
It maintains clarity and balance for both music listening and TV audio.
Built for Today’s Sources
HDMI ARC, USB, and digital inputs support modern audio sources with ease.
Bluetooth streaming and a built-in phono stage add flexibility for both wireless and vinyl playback.
Flexible System Expansion
Pre-out and subwoofer outputs allow easy system upgrades and improved bass performance.
A dedicated headphone amplifier supports private listening when needed.
Preamplifier – Line Input / Pre Out
| THD (20 Hz – 20 kHz) | <0.003% (at 2V out) |
| Signal-to-noise ratio | >100 dB (A-weighted) |
| Channel separation | >85 dB (1 kHz) / >80 dB (10 kHz) |
| Input impedance | 47 kΩ + 220 pF |
| Maximum input signal | >5.5 Vrms |
| Output impedance | 400 Ω |
| Input sensitivity | 82 mV |
| Frequency response | ±0.2 dB (20 Hz – 20 kHz) |
| Maximum output level | >4 V |
Phono Input / Pre Out
| THD (20 Hz – 20 kHz) | <0.015% (at 2V out) |
| Signal-to-noise ratio | >82 dB (line) / >76 dB (MM cartridge) |
| Input sensitivity | 1.35 mV |
| Maximum input signal | >90 mVrms (1 kHz) |
| Frequency response | ±0.3 dB (20 Hz – 20 kHz) |
Headphone Output
| THD (20 Hz – 20 kHz) | <0.003% (at 120 mW) |
| Signal-to-noise ratio | >90 dB (32 Ω load) |
| Frequency response | ±0.3 dB (20 Hz – 20 kHz) |
| Output impedance | 2 Ω |
| Maximum output | <8 V (32 Ω load) |
Amplifier Section
| Continuous power output | 60 W (4 / 8 Ω, both channels driven) |
| THD (20 Hz – 20 kHz) | <0.005% (at 1 W) |
| Signal-to-noise ratio | >98 dB |
| Clipping power | >80 W (4 Ω) |
| IHF dynamic power | 8 Ω: 80 W / 4 Ω: 150 W / 2 Ω: 200 W |
| Peak output current | >18 A |
| Damping factor | >300 |
| Frequency response | ±0.3 dB (20 Hz – 20 kHz) |
| Channel separation | >75 dB (1 kHz) / >70 dB (10 kHz) |
| Input sensitivity | 260 mV |
| Supported resolution | Up to 24-bit / 192 kHz (digital) Up to 24-bit / 384 kHz (computer) |
| Standby power | <0.5 W |
Dimensions & Weight
| Dimensions (W × H × D) |
70 × 235 × 265 mm (2 13/16 × 9 5/16 × 10 7/16 in) |
| Net weight | 3.6 kg (7.9 lbs) |
| Shipping weight | 2.6 kg (5.7 lbs) |
