Yamaha YHT-5960U 5.1-Channel Home Theater System with 8K HDMI and MusicCast

Name: Yamaha YHT-5960U 5.1-Channel Home Theater System with 8K HDMI and MusicCast
Brand: Yamaha
SKU: 67511
Availability: InStock

$749.95

people are viewing this right now

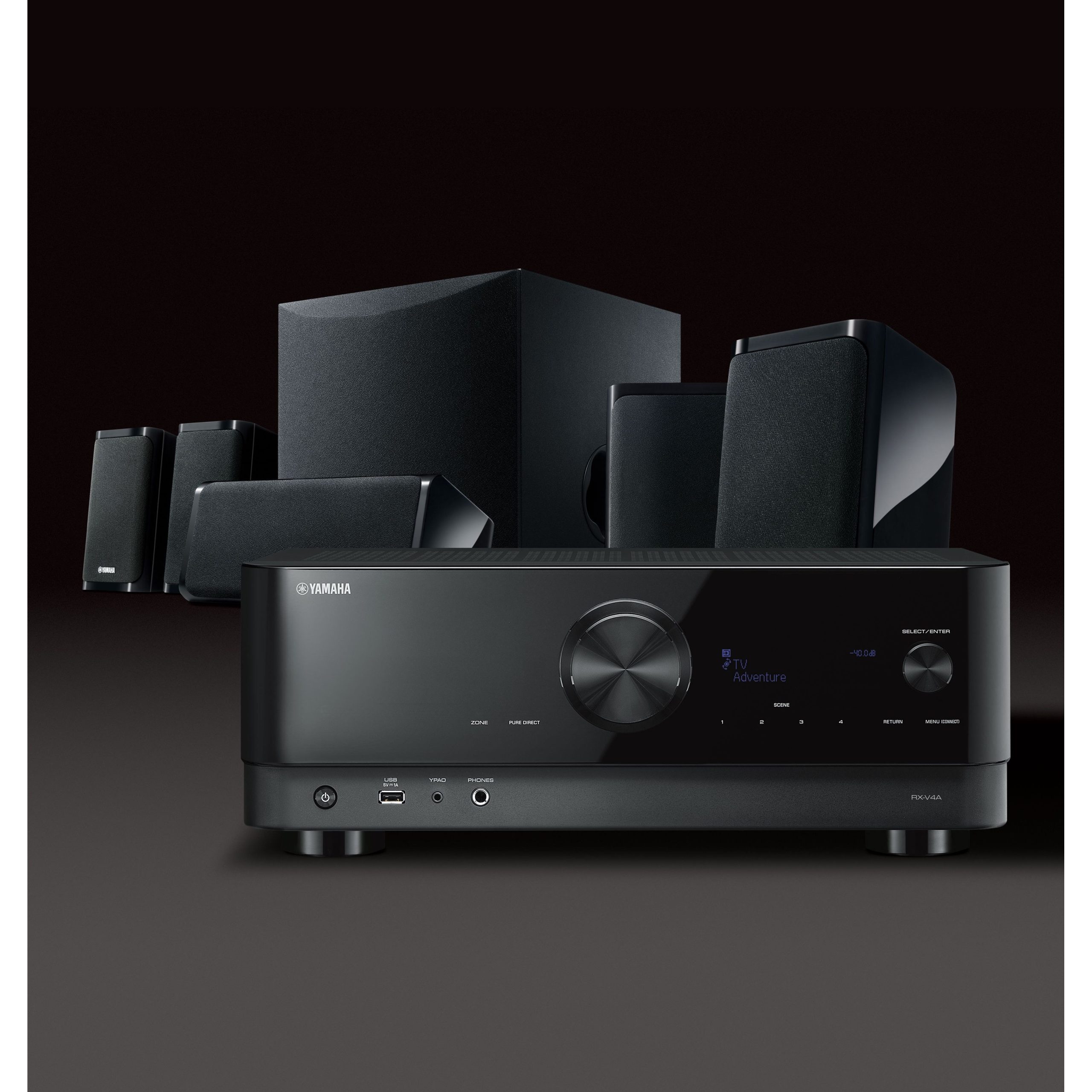

The Yamaha YHT-5960U is an all-in-one 5.1 home theater system with an 80W surround receiver, subwoofer and complete speaker set. It supports 4K60, 4K120AB and 8K60B HDMI, Dolby Vision, ALLM, VRR, Dolby TrueHD and DTS-HD. Built-in Wi-Fi, Bluetooth, MusicCast, AirPlay 2 and voice control offer easy streaming. YPAO room calibration, CINEMA DSP 3D and included speaker wire ensure simple setup and immersive sound.

Chat with our specialist

Available with Professional installation in NY, NJ, and CT – Powered by Sound Waves .

Overview

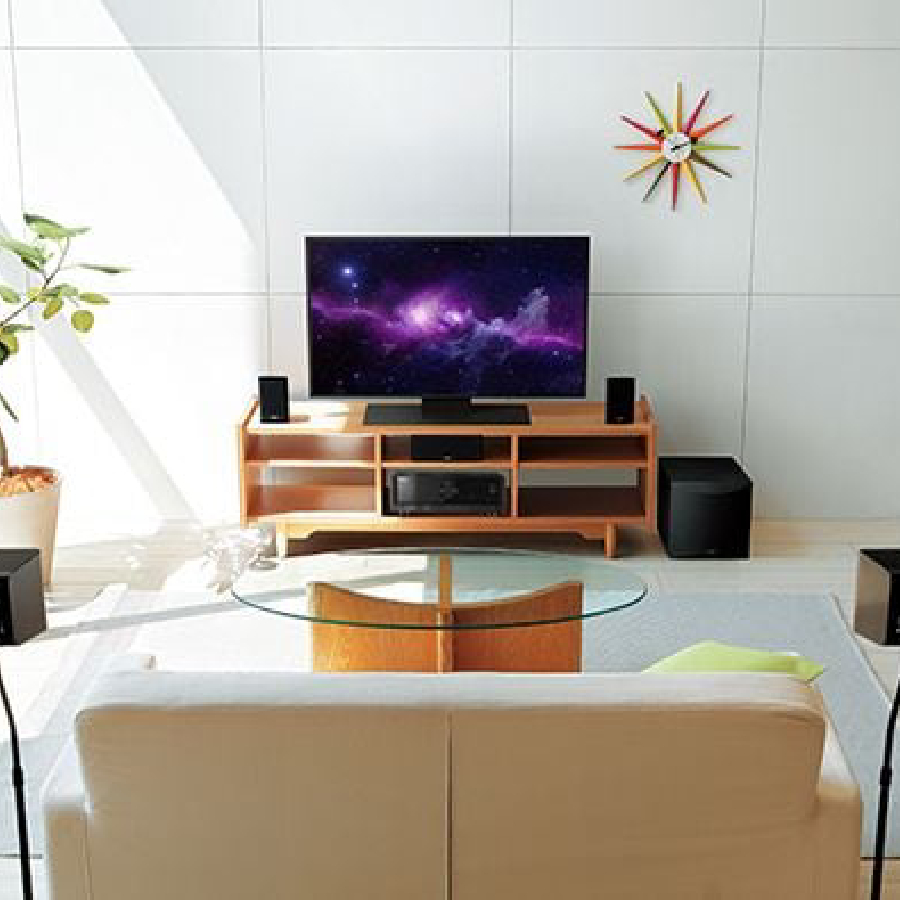

Complete 5.1-Channel Home Theater System

Powerful Surround: 80-Watt 5.1-channel system with a dedicated subwoofer.
Next-Gen Video: 8K/60Hz and 4K/120Hz HDMI 2.1 support with HDR10+ and Dolby Vision.
Gaming Optimized: Features ALLM and VRR for lag-free, fluid gameplay.

Smart Streaming: Wi-Fi, AirPlay 2, Spotify Connect, and MusicCast multi-room audio.
Room Calibration: YPAO™ automatic tuning for optimized sound in any room.
Easy Setup: Includes perfectly matched speaker wire and AV Setup Guide app.

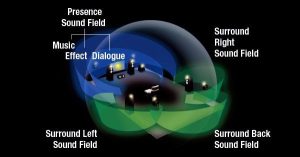

CINEMA DSP 3D

Proprietary Processing: Combines measured sound field data from world-famous concert halls and clubs with advanced digital signal processing.

Acoustic Realism: Effectively reproduces the actual ambience of a theater or live venue right in your home for an astounding cinematic experience.

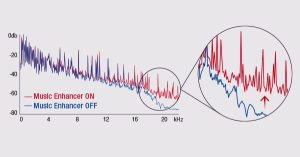

Enhanced Detail: Includes the Compressed Music Enhancer to restore frequency response lost during digital compression (like MP3s).

Advanced 8K & Pro Gaming

HDMI 2.1 Ecosystem: Supports end-to-end 8K/60Hz and 4K/120Hz resolutions for ultra-sharp viewing of action movies and high-speed sports.

Seamless Interactivity: Auto Low Latency Mode (ALLM) and Variable Refresh Rate (VRR) eliminate lag, stutter, and frame tearing for competitive gaming.

HDR10+ Accuracy: Improves dynamic range on a frame-by-frame basis, ensuring realistic detail in both the brightest and darkest scenes.

Smart Control & Streaming

MusicCast Ecosystem: Use your smartphone to operate the receiver and play from Spotify, TIDAL, Amazon Music HD, and more across multiple rooms.

Voice Assistance: Fully compatible with Alexa, Google Assistant, and Siri via AirPlay 2 for hands-free control of your entire home theater.

Preset Scenes: Program up to four SCENE buttons for instant access to your favorite inputs, sound fields, or streaming stations at a single touch.

Intuitive Design & Calibration

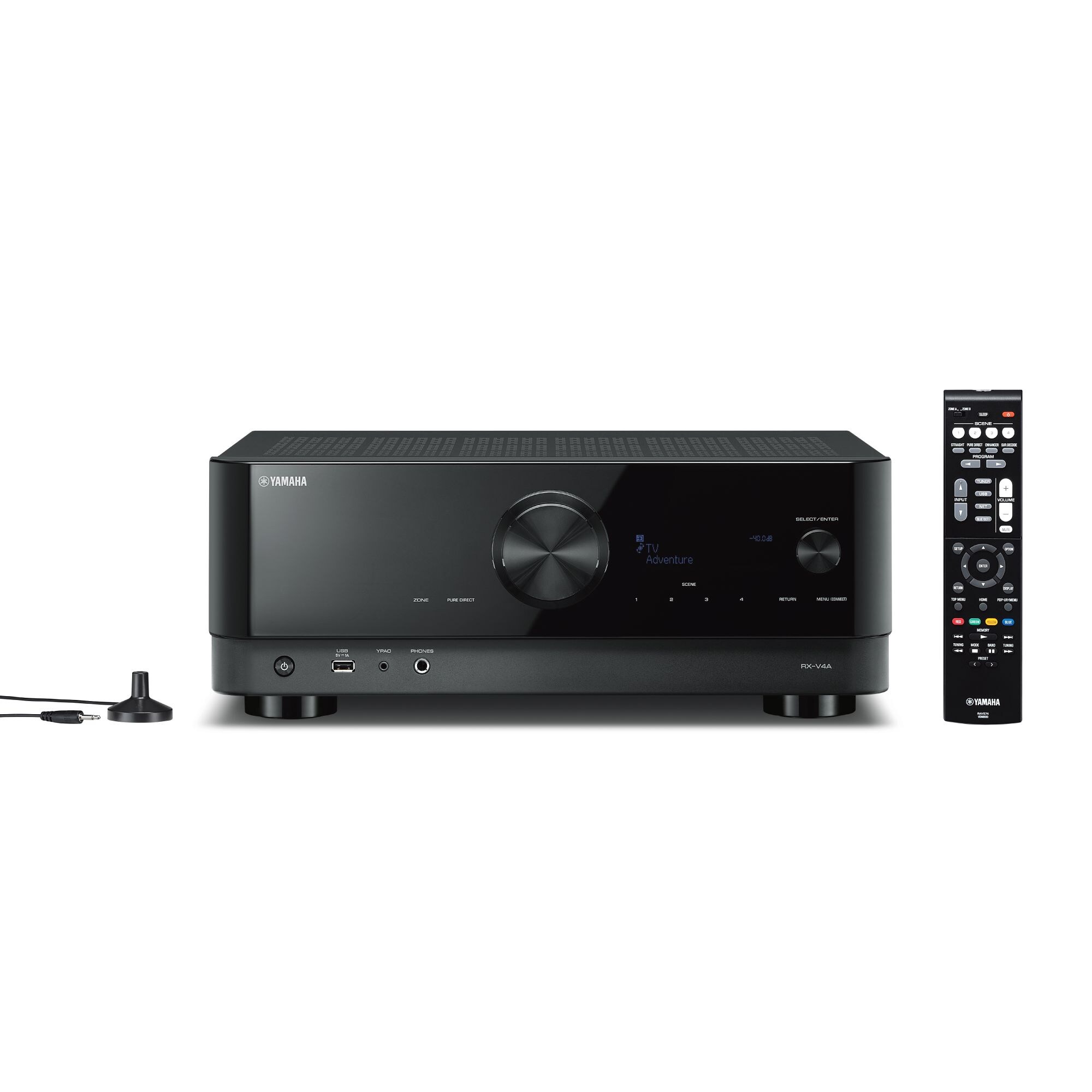

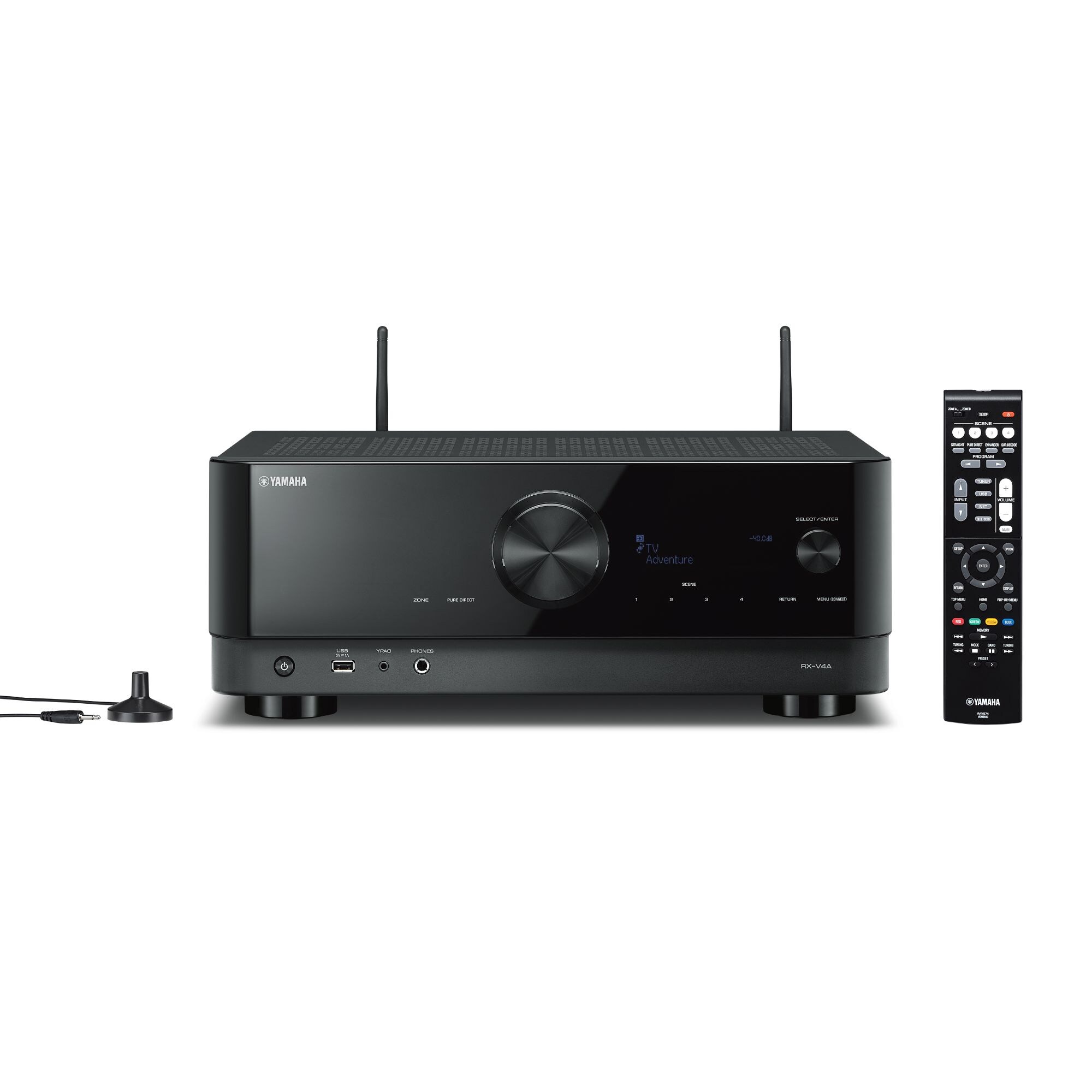

YPAO™ Optimizer: Analyzes room acoustics via a supplied microphone and automatically adjusts audio parameters for optimum performance.

Elegant Aesthetics: The bookshelf and center speakers feature a fine gloss finish reminiscent of musical instruments, with keyholes for easy wall-mounting.

eARC Connectivity: Unlocks full-resolution, multi-channel audio formats like Dolby TrueHD and DTS-HD through a single HDMI cable.

Specifications

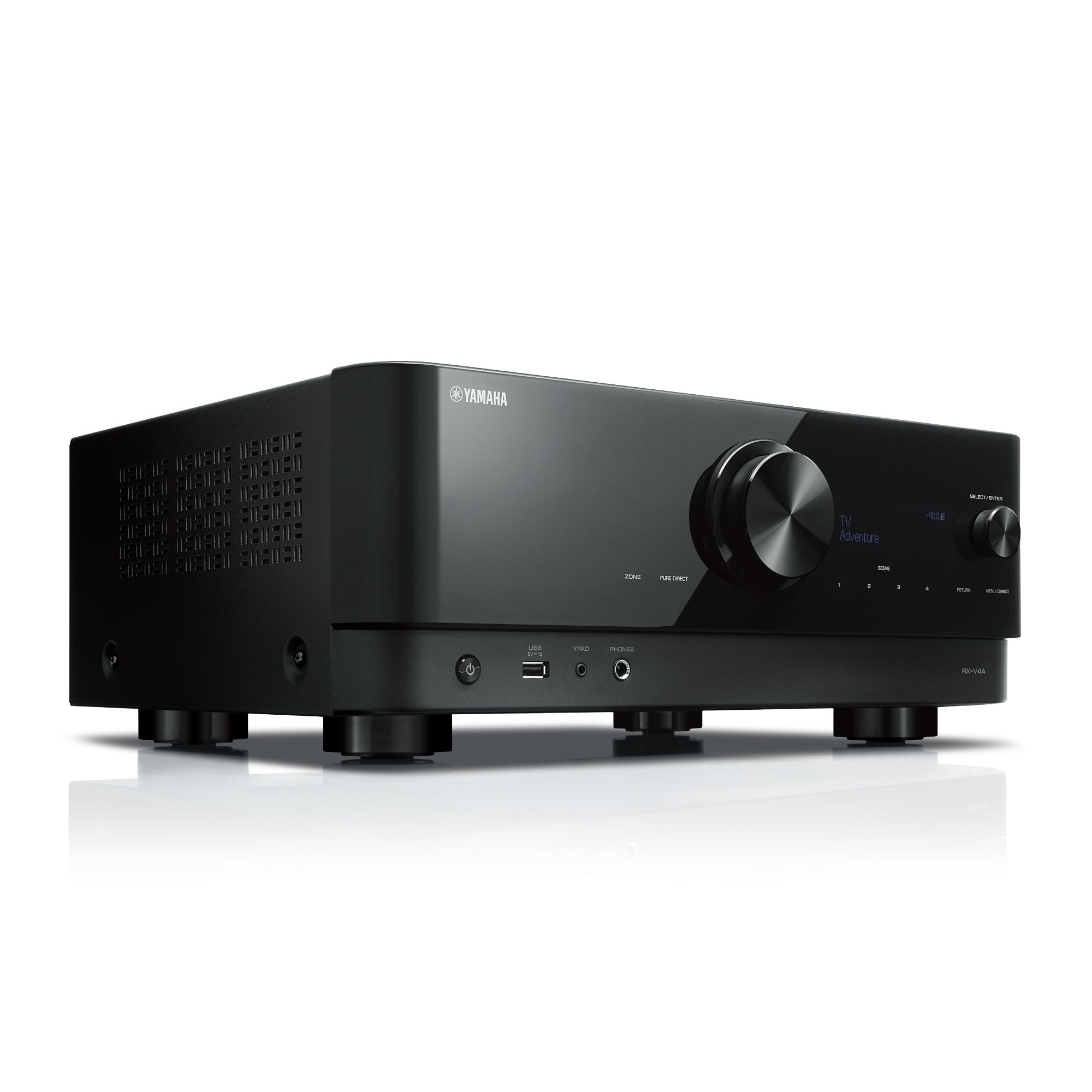

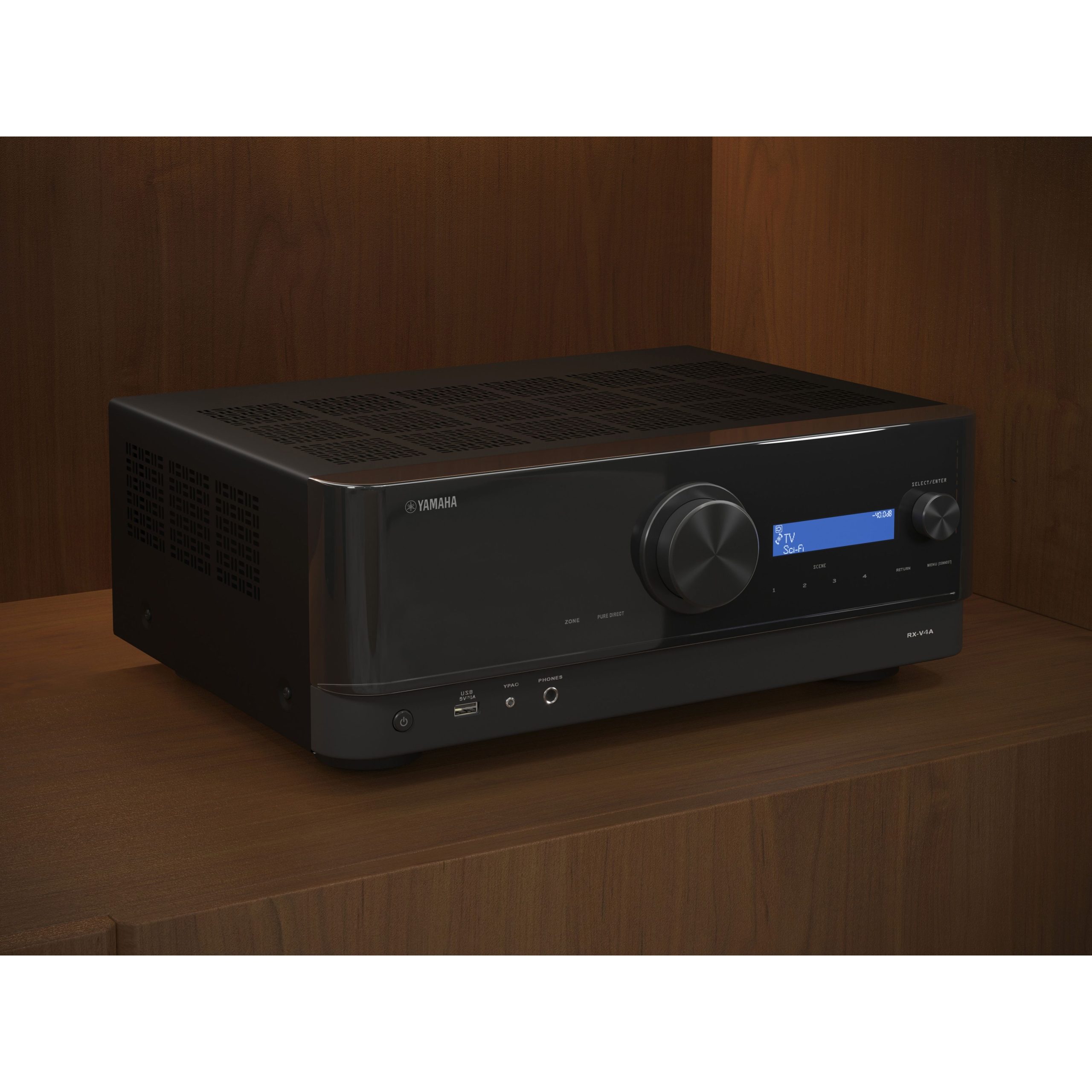

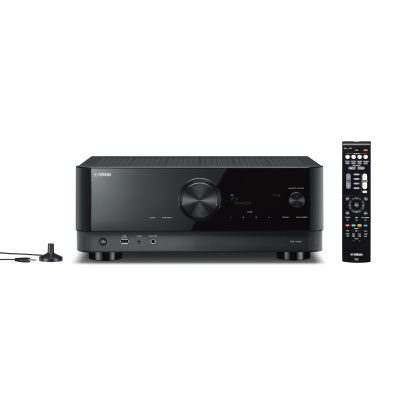

AV Receiver
Amplifier Section	Channels	5.2	5.1
	Rated Output Power (20Hz-20kHz, 2ch driven)	80 W (6 ohms, 0.06% THD)	70 W (8 ohms, 0.09% THD)
	High Slew Rate Amplifier	Yes	N/A
Surround Sound Processing	Cinema DSP	Yes	Yes
	DSP Programs	17	17
	Dialog Level Adjustment	Yes	Yes
	Virtual Presence Speaker	Yes	N/A
	Virtual Surround Back Speaker	N/A	N/A
	Dialogue Lift	N/A	N/A
	SILENT Cinema / Virtual Cinema DSP	Yes	Yes (Virtual CINEMA FRONT)
	Dolby Atmos	N/A	N/A
	Dolby Atmos Height Virtualization	N/A	N/A
	Dolby TrueHD	Yes	Yes
	Dolby Digital Plus	Yes	Yes
	Dolby Surround	N/A	N/A
	DTS:X	N/A	N/A
	DTS-HD Master Audio	Yes	Yes
Audio Features	File Format	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz	MP3 / WMA / MPEG-4 AAC / WAV: up to 48 kHz / 16-bit
	Pure Direct	Yes	Yes
	Compressed Music Enhancer	Yes	Yes (includes enhancer for Bluetooth)
	YPAO Multipoint Measurement	N/A	N/A
	YPAO Volume	Yes	Yes
	Adaptive DRC (Dynamic Range Control)	Yes	Yes
	Initial Volume and Maximum Volume Setting	Yes	Yes
	Bi-amp Capability	Yes	N/A
	Audio Delay	Yes (0-500 ms)	Yes (0-500 ms)
	DA Converter	384 kHz / 32-bit BB PCM5101A	Burr-Brown 384 kHz / 32-bit DAC x 3
	YPAO Sound Optimization	Yes	Yes
Video Features	HDMI eARC	Yes	Yes (via firmware update)
	HDMI Audio Return Channel	Yes	Yes
	HDMI Pass-through	4K120AB, 8K60B, 4K60 and 24GBPS	N/A
	HDMI Upscaling	Yes up to 4K	Yes (HDMI to HDMI)
	Dolby Vision	Yes	Yes
	HDR 10+	Yes	N/A
	VRR & ALLM	Yes	N/A
	4K Ultra HD Pass-through and Upscaling	Yes	Yes (4K / 60p, 4:4:4)
	HDMI 3D Pass-through	Yes	Yes
	Deep Color / x.v.Color / 24Hz Refresh Rate / Auto Lip-Sync	Yes	Yes
Connectivity	MusicCast Surround	Yes	N/A
	Wi-Fi	Yes (2.4 / 5 GHz)	N/A
	AirPlay 2	Yes	N/A
	Bluetooth	Yes (SBC / AAC)	Yes (SBC, in and out)
	Phono Input	N/A	N/A

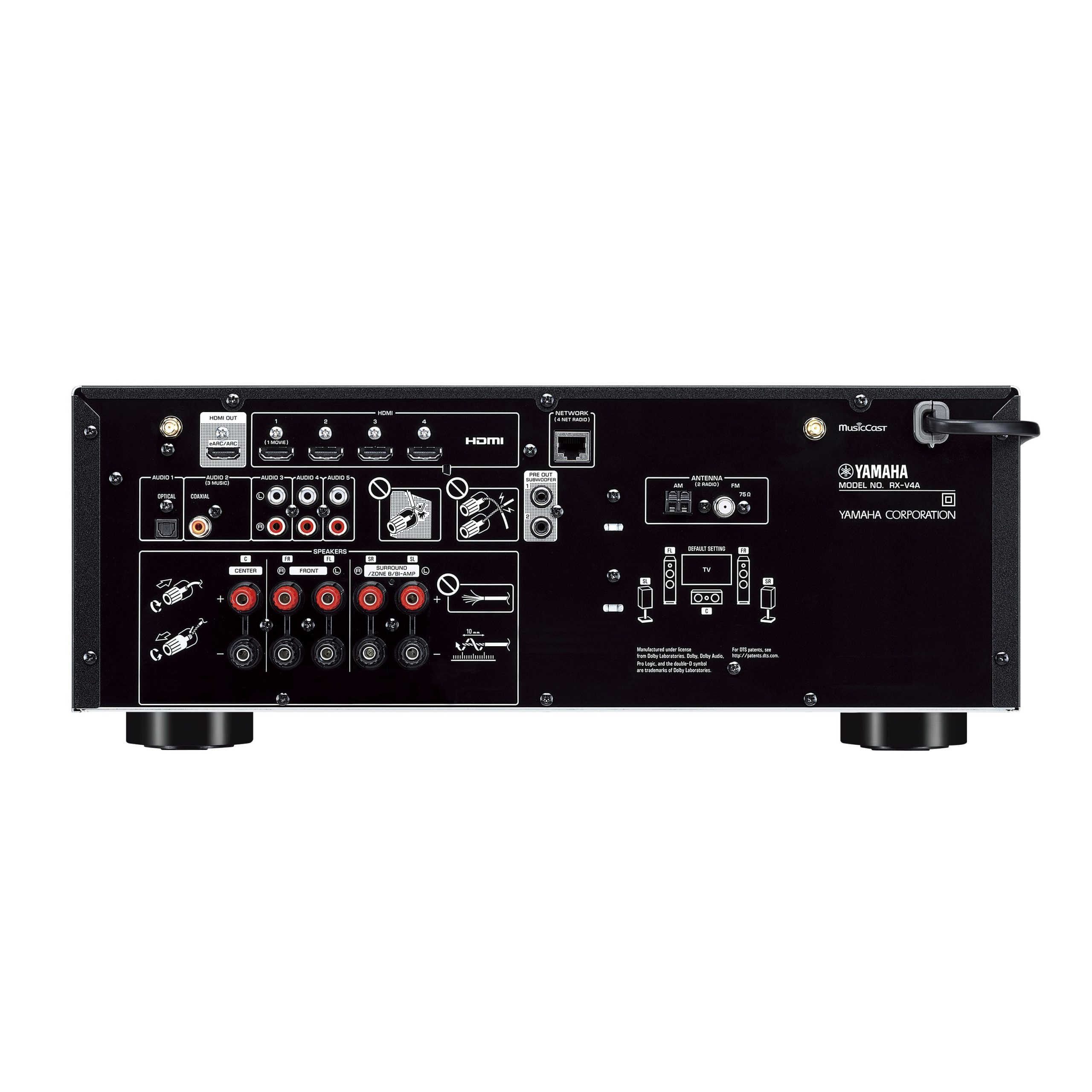

Extensive Connections	HDMI Input/Output	4 / 1 (HDR / Dolby Vision™ / HLG and BT.2020-compatible)	4 / 1 (HDCP 2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
	HDMI CEC	Yes	Yes
	USB Input	Yes	USB memory
	Network Port	Yes	N/A
	Front AV Input	USB	USB / mini jack
	Digital Audio Input / Output: Optical	1 / 0	1 / 0
	Digital Audio Input / Output: Coaxial	1 / 0	2 / 0
	Analog Audio Input / Output	3 / 0	3 (front 1) / 0
	Preout	0.2-ch	0.1-ch
	Headphone Output	1	1
	Composite Video Input / Output	N/A	3 / 1
Tuner Section	FM / AM Tuner	Yes	Yes
User Interface	On-Screen Display	Graphical User Interface	Yes (color OSD)
	SCENE	Yes (4 sets)	SCENE (4 sets)
	App Control	Yes (iPhone / iPad / Android phone / tablet)	N/A
	Web Browser Control	N/A	N/A
	Remote Control Unit	Yes	Yes
General	Standby Power Consumption (IR only)	0.1 W	≤ 0.2 W
	Auto Power Standby	Yes	Yes
	ECO Mode	Yes	Yes
	Dimensions (W x H x D)	17-1/8" x 6-3/4" x 14-7/8" D (with antenna up:17-1/8" x 9-5/8" x 14-7/8")	17-1/8" x 6-3/8" x 12-3/8"
	Weight	19.4 lbs.	17.0 lbs.

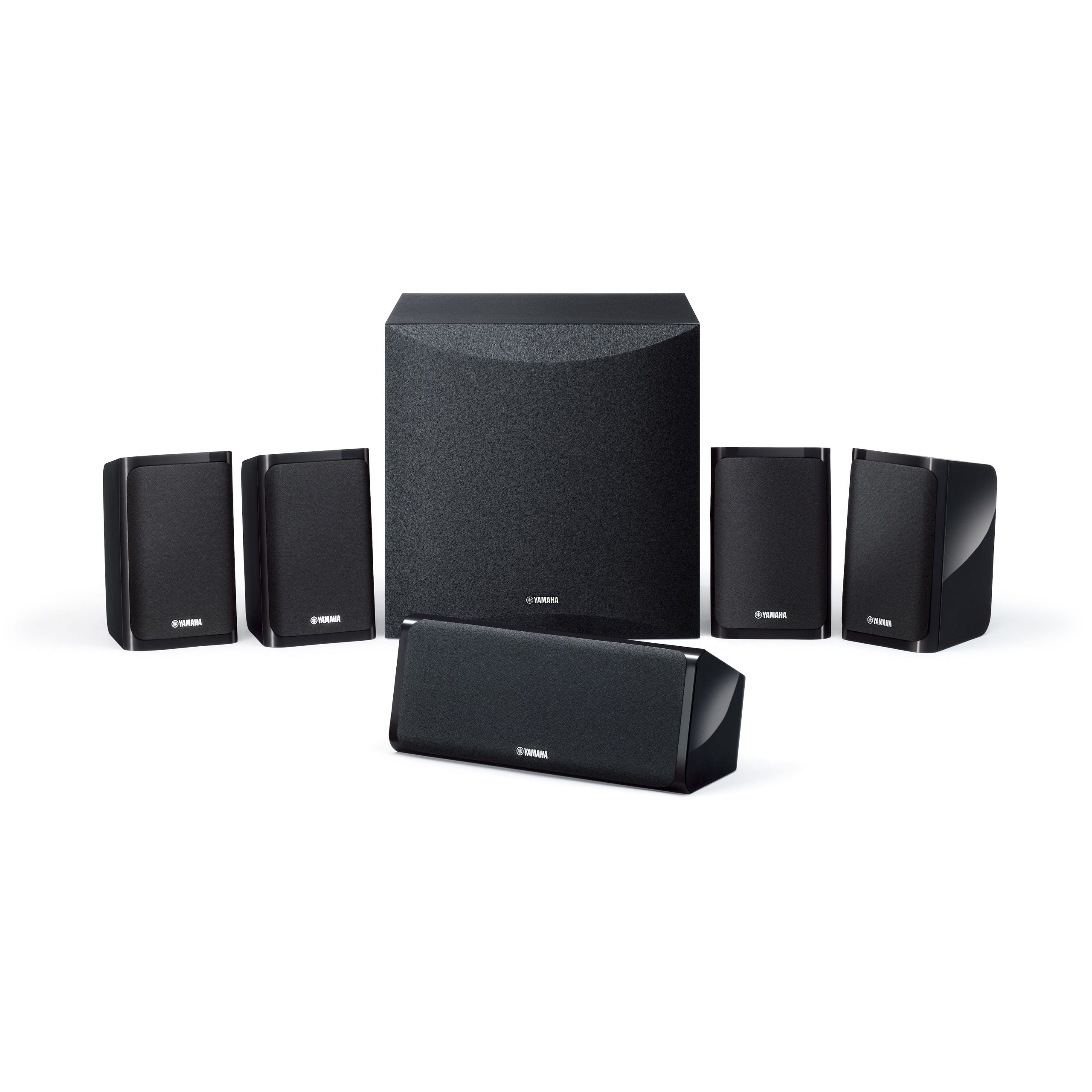

Package Speaker
Channels		5.1	5.1
Speaker System	System Frequency Response	28 Hz–25 kHz	28 Hz–25 kHz
Speaker System	Impedance	6 ohms (without subwoofer)	6 ohms (without subwoofer)
Front Speaker	Type	Full-range bass-reflex	Full-range bass-reflex
	Driver	2-3/4" full-range cone	2-3/4" full-range cone
	Nominal Input Power	30 W	30 W
	Maximum Input Power	100 W	100 W
	Sensitivity	83 dB / 2.83 V / 1 m	83 dB / 2.83 V / 1 m
	Dimensions (W x H x D)	4-3/8 " x 6-7/8" x 4-5/8"	4-3/8" x 6-7/8" x 4-5/8"
	Weight	1.3 lbs. / unit	1.3 lbs. / unit
Center Speaker	Type	Full-range acoustic suspension	Full-range acoustic suspension
	Driver	2-3/4" full-range cone	2-3/4" full-range cone
	Nominal Input Power	30 W	30 W
	Maximum Input Power	100 W	100 W
	Sensitivity	84 dB / 2.83 V / 1 m	84 dB / 2.83 V / 1 m
	Dimensions (W x H x D)	10-7/8" x 4-3/8" x 4-5/8"	10-7/8" x 4-3/8" x 4-5/8"
	Weight	1.61 lbs.	1.61 lbs.
Surround Speaker	Type	Full-range bass-reflex	Full-range bass-reflex
	Driver	2-3/4" full-range cone	2-3/4" full-range cone
	Nominal Input Power	30 W	30 W
	Maximum Input Power	100 W	100 W
	Sensitivity	83 dB / 2.83 V / 1 m	83 dB / 2.83 V / 1 m
	Dimensions (W x H x D)	4-3/8" x 6-7/8" x 4-5/8"	4-3/8" x 6-7/8" x 4-5/8"
	Weight	1.3 lbs. / unit	1.3 lbs. / unit
Subwoofer	Type	Advanced YST II	Advanced YST II
	Driver	8" cone	8" cone
	Output Power	50 W (5 ohms, 100 Hz, 10% THD)	50 W (5 ohms, 100 Hz, 10% THD)
	Dynamic Power	100 W (5 ohms)	100 W (5 ohms)
	Frequency Response	28–200 Hz	28–200 Hz
	Twisted Flare Port	Yes	Yes
	Power Consumption	40 W	40 W
	Dimensions (W x H x D)	11-1/2" x 11-1/2" x 13-3/8"	11-1/2" x 11-1/2" x 13-3/8"
	Weight	18.7 lbs	18.7 lbs
