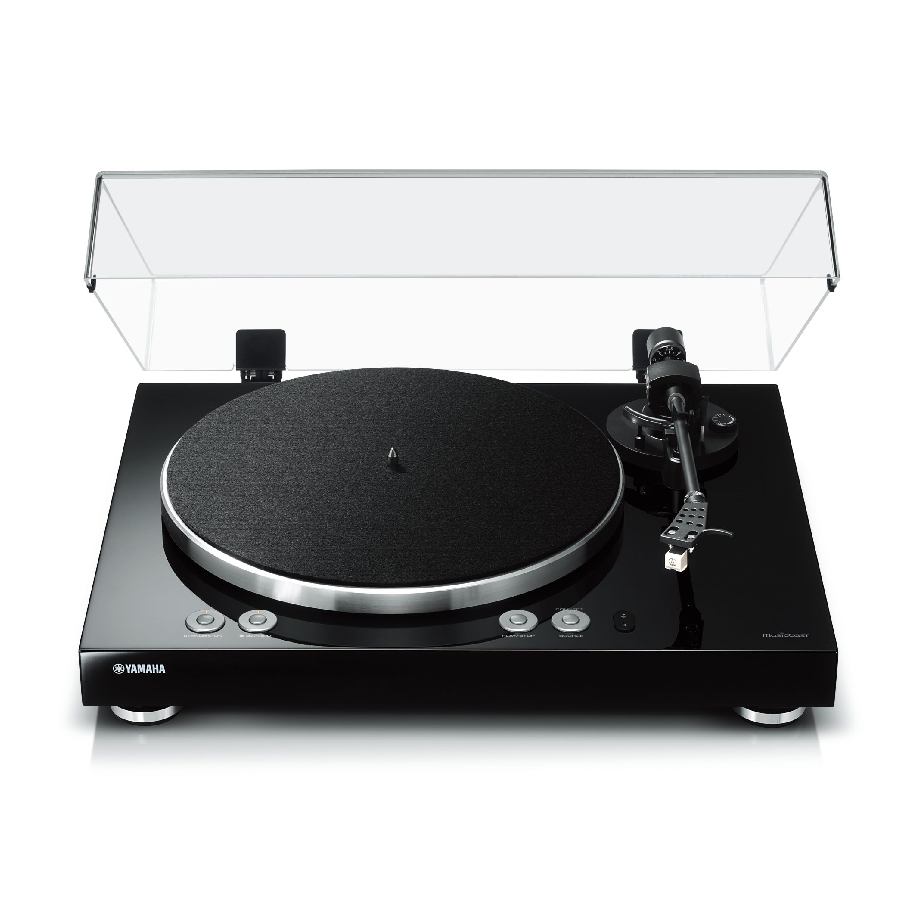

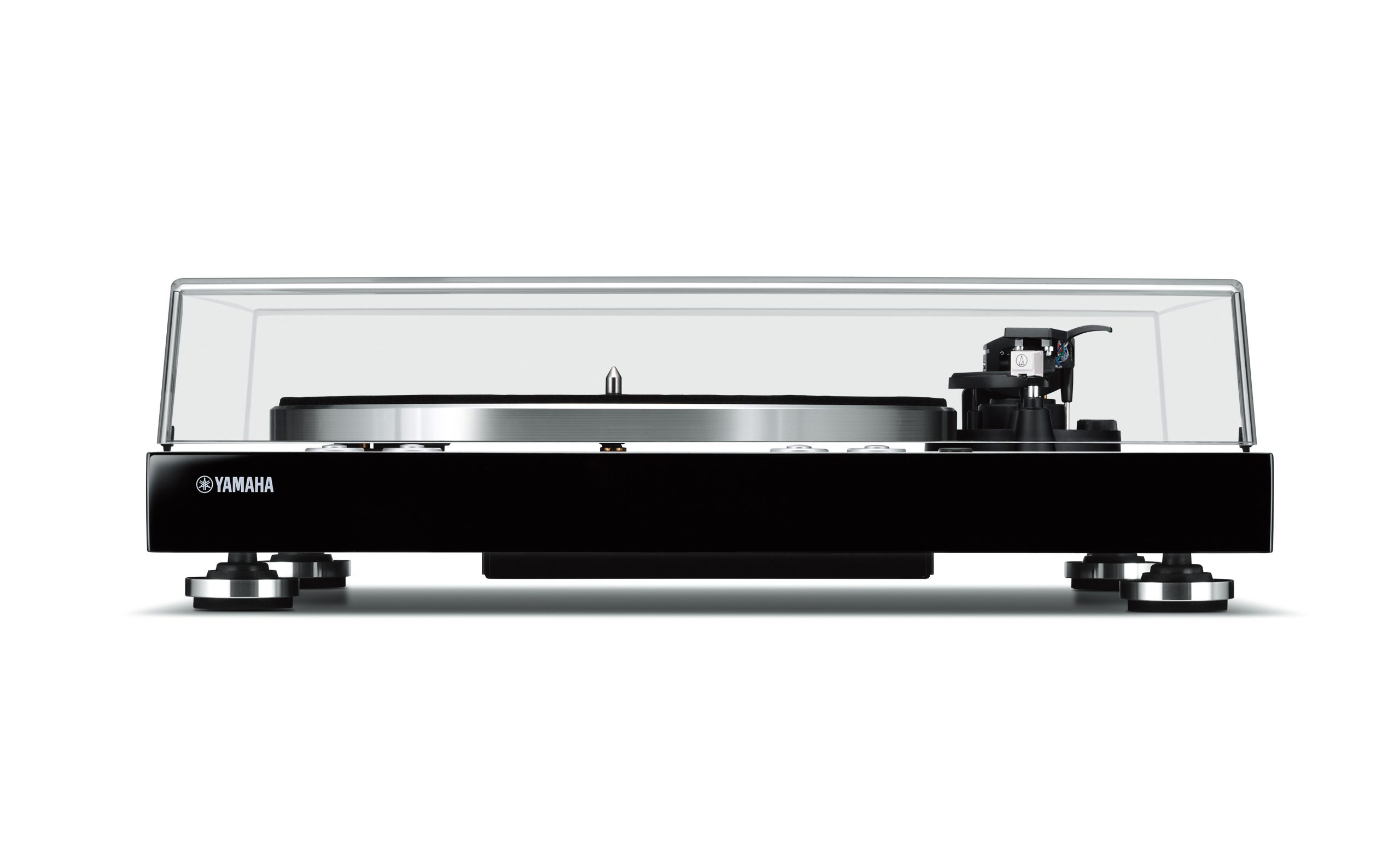

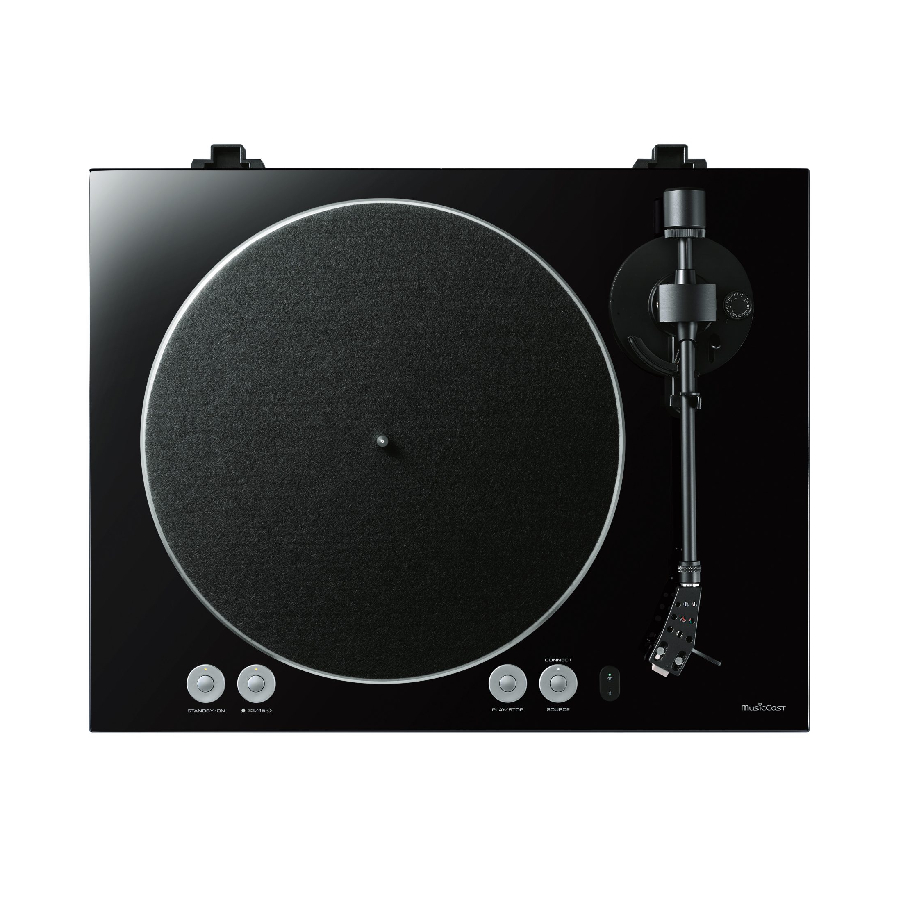

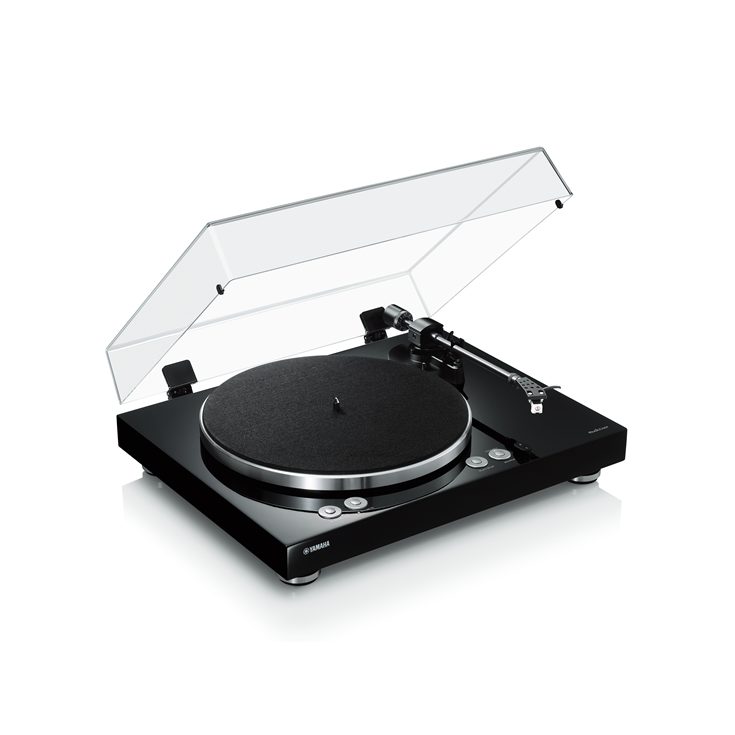

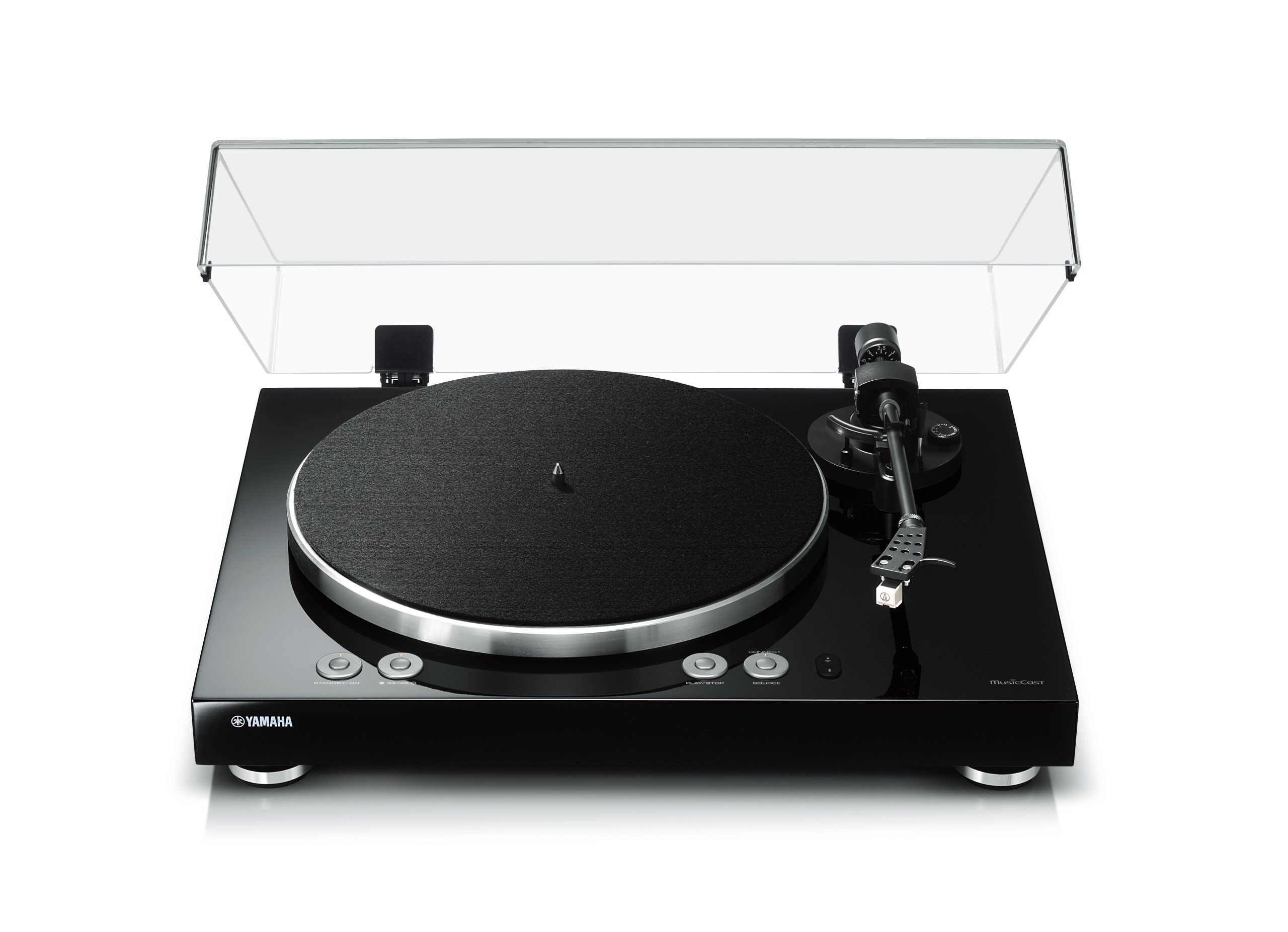

Yamaha TT-N503BL MusicCast VINYL 500 Wi-Fi Turntable

$899.95
people are viewing this right now

The MusicCast VINYL 500 lets you stream records wirelessly to MusicCast speakers with no receiver or cables. Enjoy Wi-Fi, Bluetooth, AirPlay 2 and Spotify Connect, plus a built-in phono preamp for use with any audio system. Designed for pure, accurate sound with a straight tonearm and belt-drive motor. Control multi-room playback with the MusicCast app, and use Alexa, Google Assistant or Siri. Stream to Bluetooth headphones or speakers with low-latency output.

Chat with our specialist

Available with Professional installation in NY, NJ, and CT – Powered by Sound Waves .

MusicCast VINYL 500: A New Spin on Sound

  • Wireless Freedom: Connect to MusicCast speakers or receivers without a single cable.
  • Stream Everything: Built-in Wi-Fi, AirPlay 2, Spotify Connect, and Bluetooth®.
  • Legacy Ready: Built-in phono preamp connects to any traditional Hi-Fi system.
  • Audiophile Design: Straight tonearm and belt-drive motor for pure sound reproduction.
  • Voice Control: Hands-free operation with Alexa, Google Assistant, and Siri.
  • Dual Speeds: High-precision rotation for both 33-1/3 rpm and 45 rpm records.

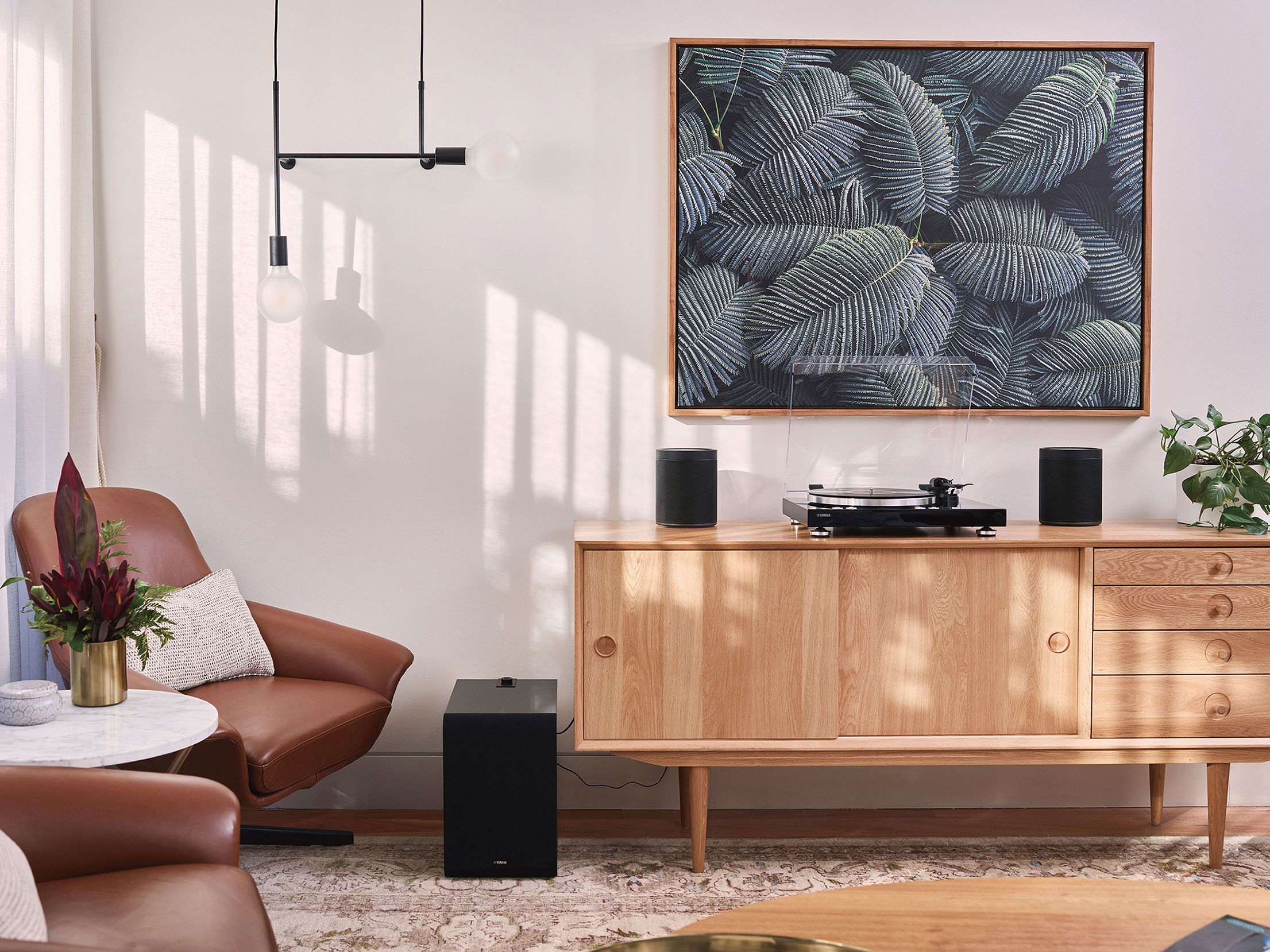

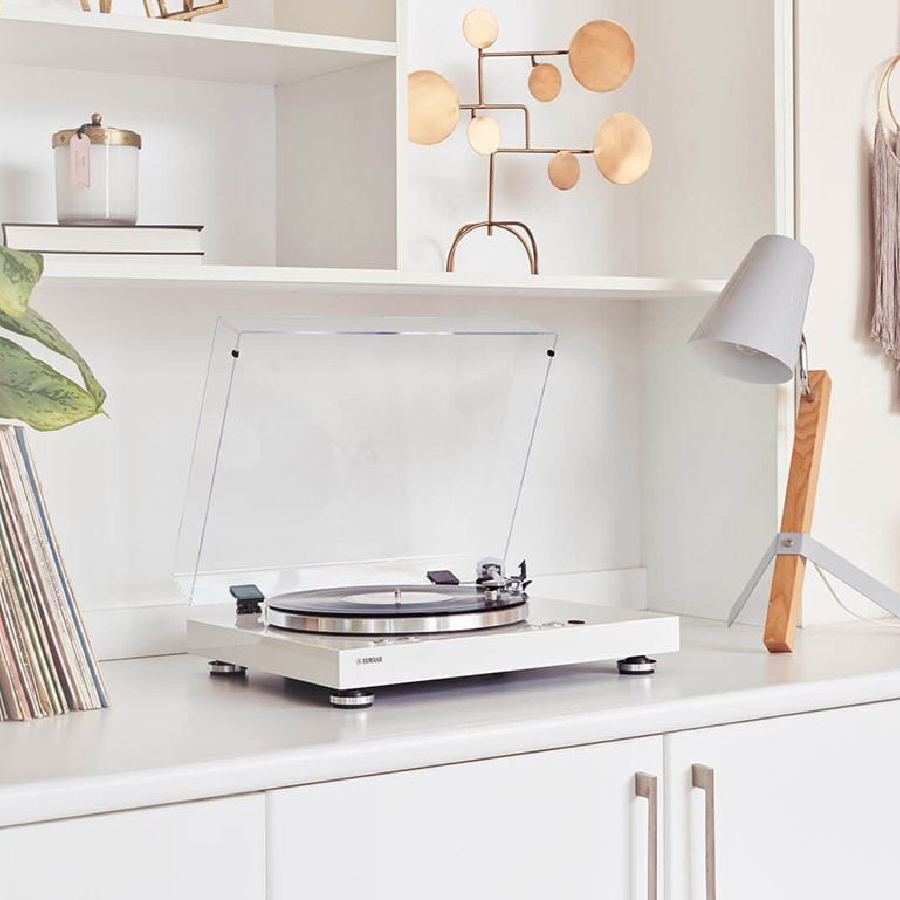

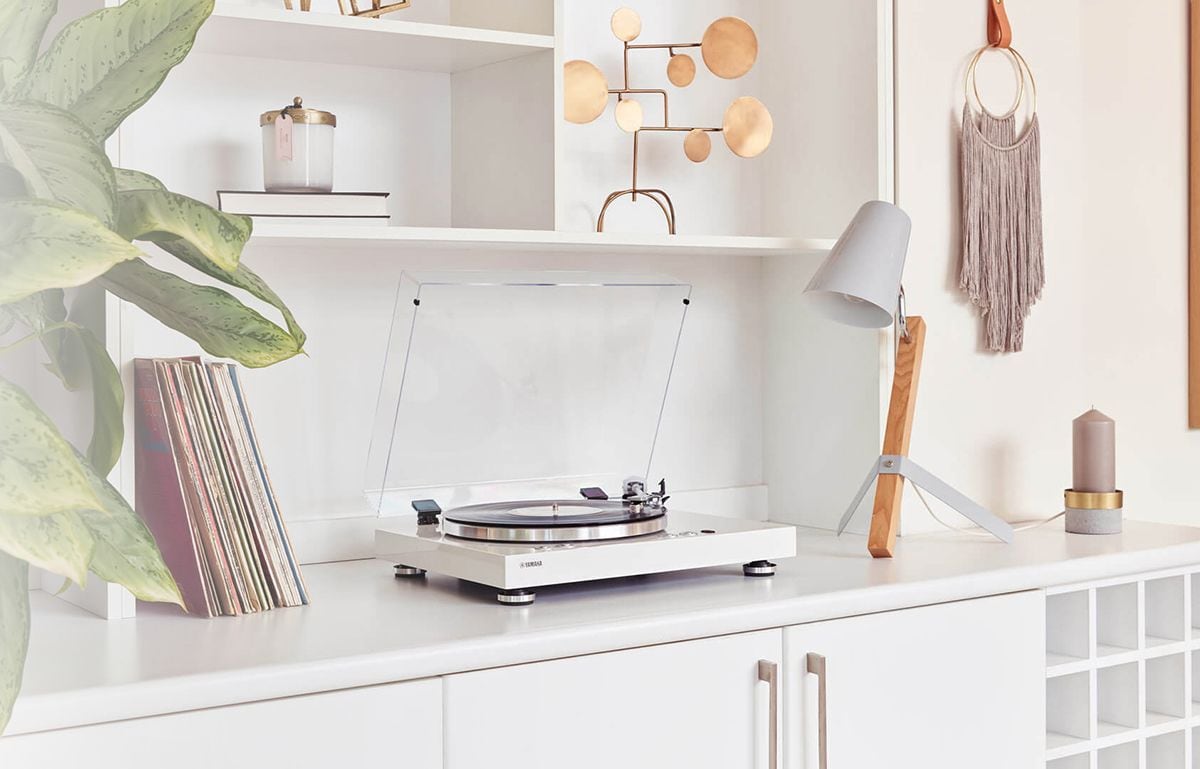

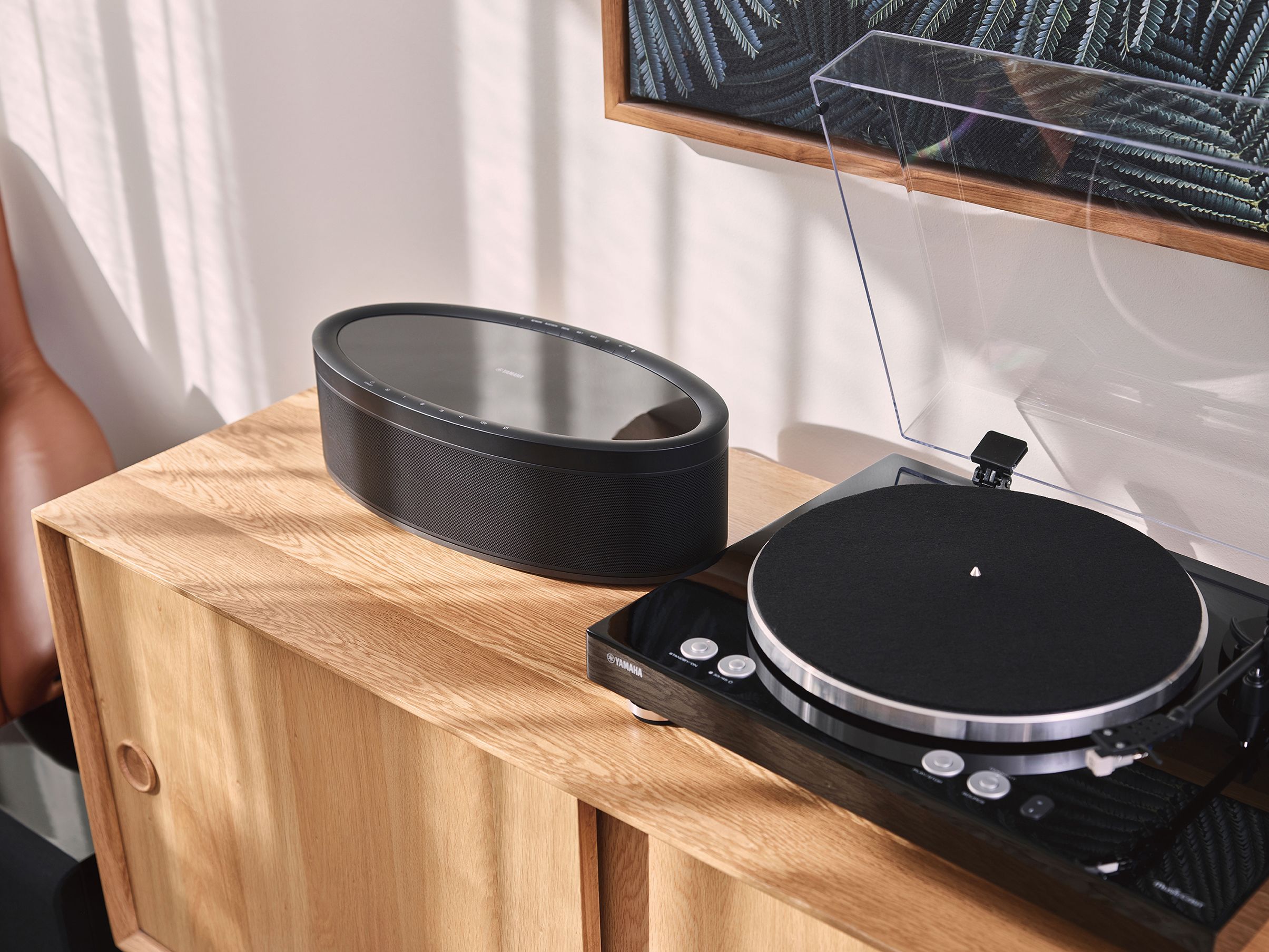

Yamaha Wireless Turntable Setup

Turning the Tables on Cables

Wireless Connectivity: Give your “old-school” records a modern spin. Wirelessly connect to any MusicCast-enabled device to enjoy your collection anywhere in the house.

Place it Anywhere: Without the need for bulky receiver wires, you have the creative freedom to put your turntable wherever it looks—and sounds—the best.

Don’t Stop the Music

Endless Streaming: When the record ends, the music doesn’t have to. Switch seamlessly to streaming services via Spotify Connect, AirPlay, or Bluetooth.

Modern Upgrade: Connect the VINYL 500 to your existing stereo equipment to instantly add modern streaming capabilities to your legacy Hi-Fi setup.

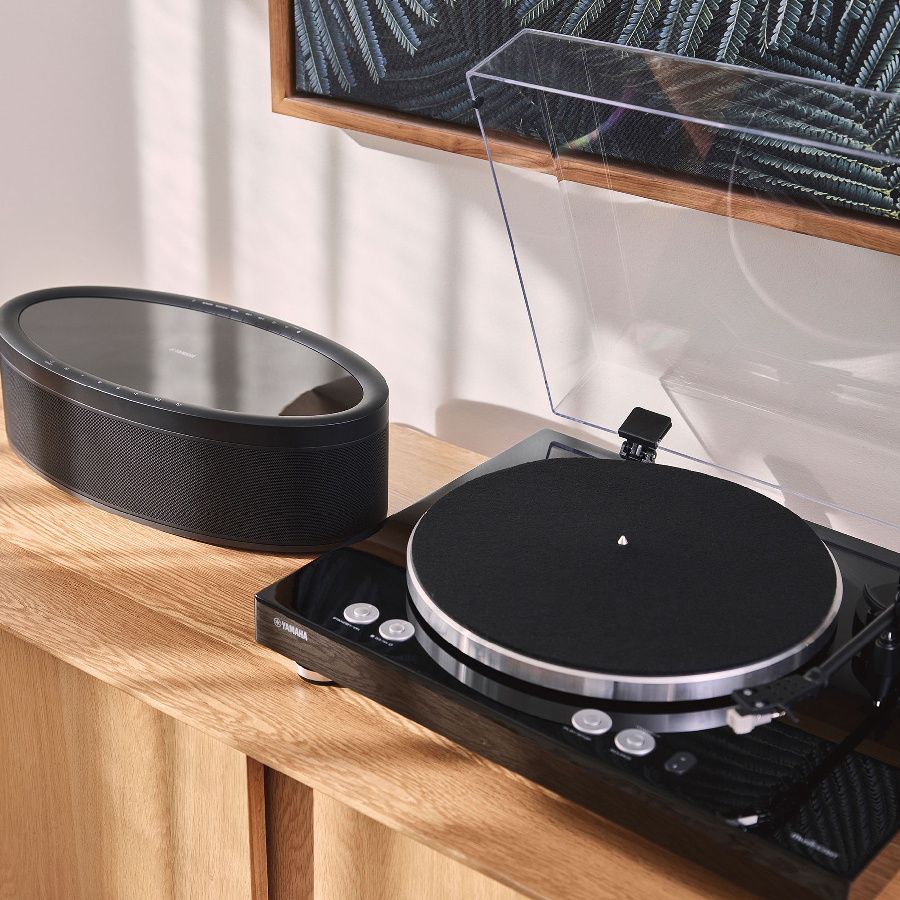

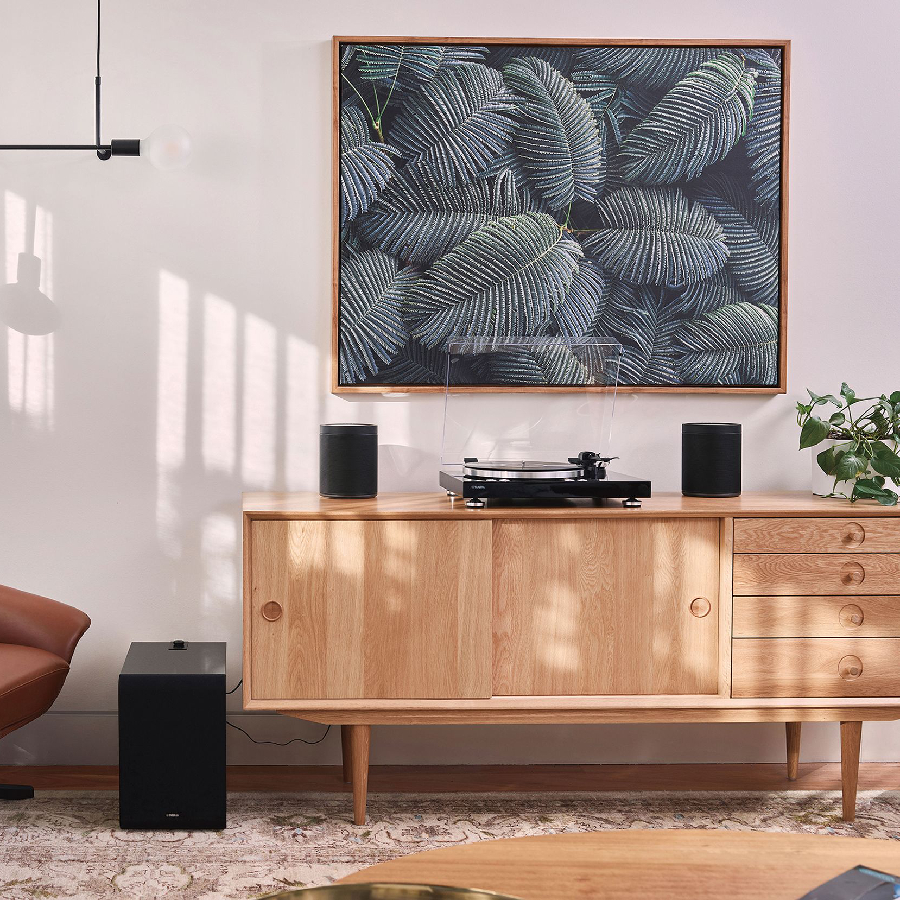

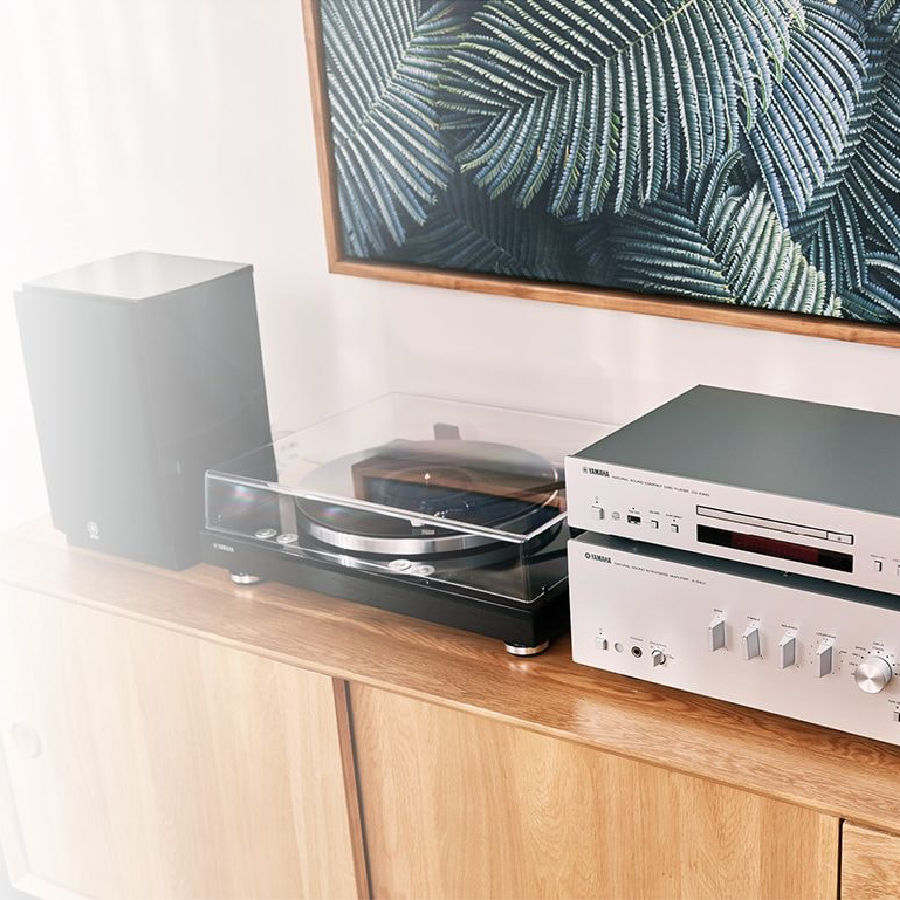

Yamaha Vinyl 500 Streaming

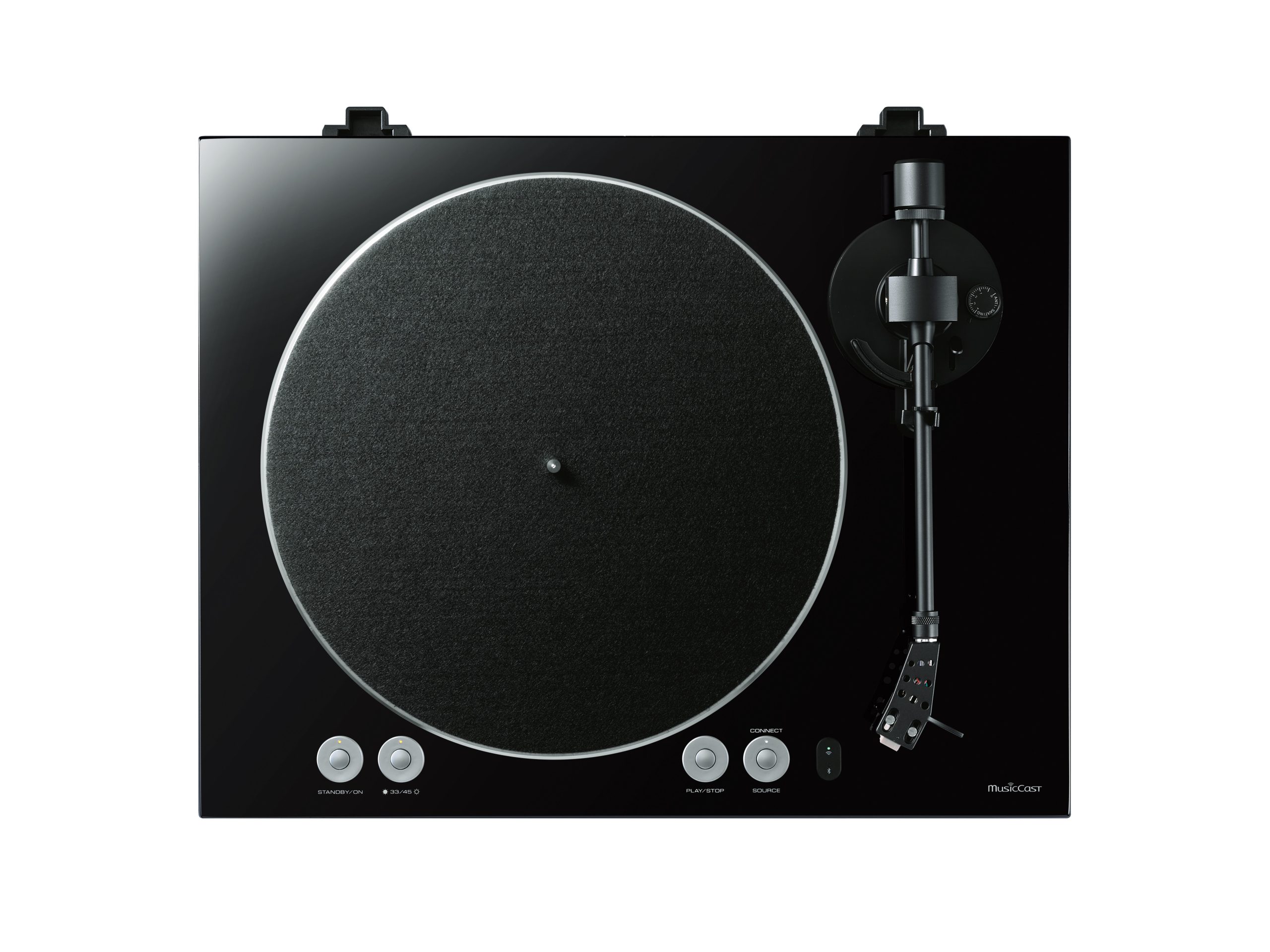

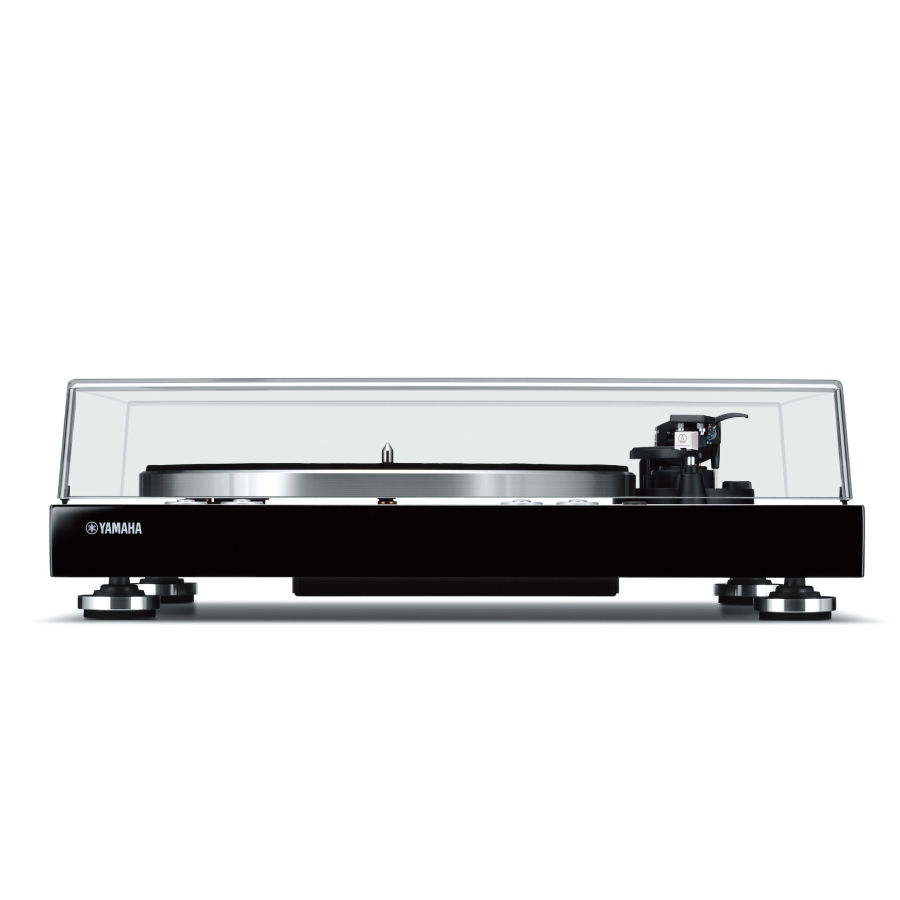

Yamaha Vinyl 500 Tonearm

Precision Engineering

Faithful Reproduction: Meticulously designed for pure sound. The straight tonearm provides an open, airy soundstage, while the belt-drive motor minimizes vibrational noise.

Premium Aesthetics: The elegant piano black finish pays homage to Yamaha’s grand piano heritage while fitting perfectly into any modern interior.

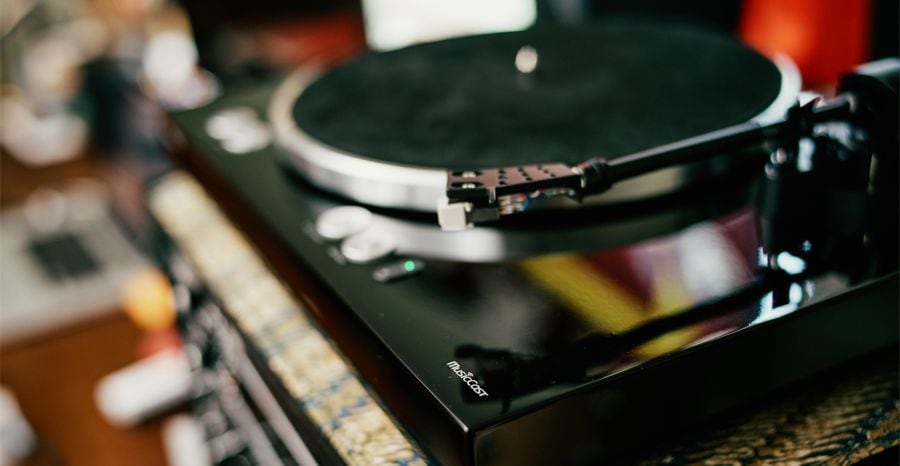

Bluetooth® Convenience

Wireless Out: Stream your vinyl directly to Bluetooth headphones for private listening or to your favorite portable Bluetooth speakers.

Improved Performance: The upgraded Bluetooth output reduces lip-sync delays, ensuring your digital and analog sources remain perfectly in time.

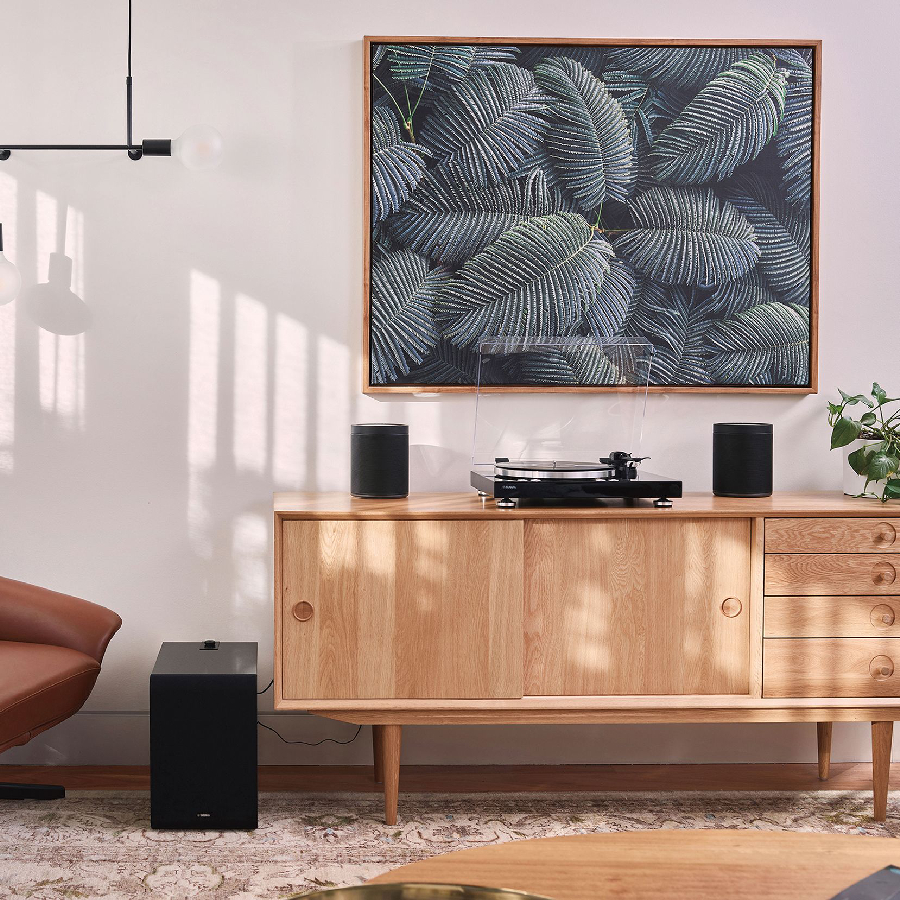

Yamaha Bluetooth Turntable

Total Multi-Room Control

Take command with the MusicCast app. Create favorites, manage your multi-room vinyl experience, and customize the settings that make your music truly yours. Combine it with Alexa or Google Assistant for effortless voice control.

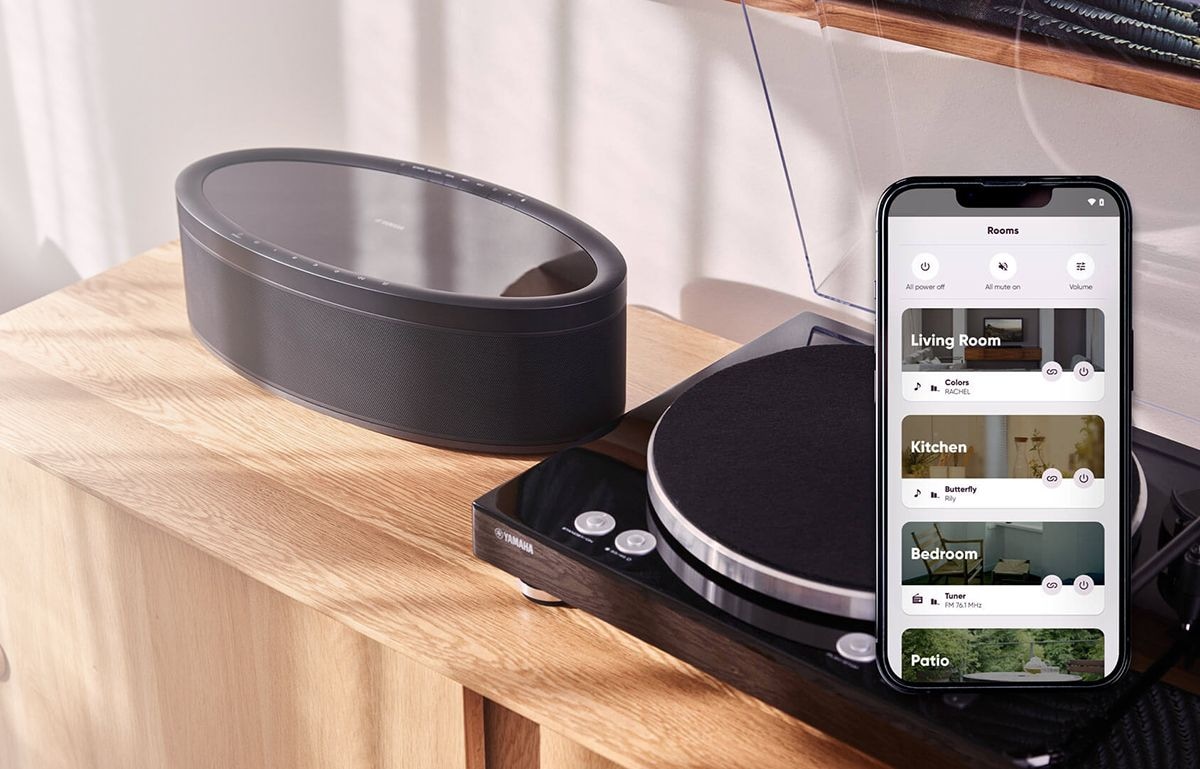

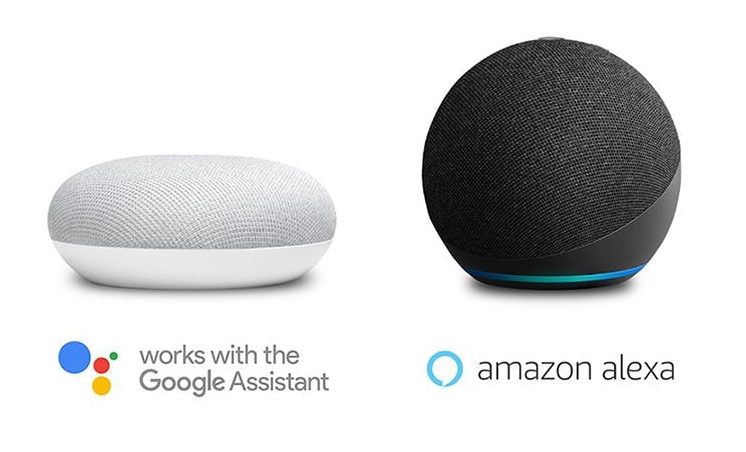

Yamaha MusicCast App Ecosystem
Network Section File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
Ethernet Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay Yes
Bluetooth Section Version/Profile Ver. 4.2 / A2DP, AVRCP (Bluetooth is compatible with SCMS-T.)
Audio Codec SBC, AAC
Maximum Communication Range 32 ft. 10 in. (without interference)
Turntable Drive Method Belt drive
Motor DC motor
Rotation Speed 33-1/3 rpm, 45 rpm
Rotation Speed Variation ±2%
Wow And Flutter 0.2%
Platter Aluminium die-cast (Diameter 30 cm)
Output Level 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec)
Signal To Noise Ratio 67 dB or higher (A-weighted, 20 kHz, LPF)
Tonearm Tonearm Static balance straight tonearm
Effective Arm Length 223.5 mm
Overhang 19 mm
Stylus Pressure Adjustment Range 0-4 g
Acceptable Cartridge Weight 15.5-19 g (including headshell)
Attached Cartridge Cartridge Type MM type
Output Voltage 2.5 mV (1 kHz, 3.54 cm / sec)
Stylus Pressure 3.5 ± 0.5 g
Cartridge Weight 5.0 ± 0.3 g
Cartridge Height 17.0 ± 0.7 mm
Headshell Weight 10 g (including screws, nuts and wires)
Audio Specifications Output Terminal RCA: 2 (PHONO, LINE)
Output Level 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
Signal to Noise Ratio [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz)
Dynamic Range 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz)
Harmonic Distortion 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz)
Frequency Response Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB)
General Power Consumption 6 W
Eco-Standby (reference date) 0.3 W
Standby Power Consumption 1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired)
Dimension (W×H×D) 17-3/4” x 5-3/8” x 14-1/2”
Weight 12.6 lbs.
