OD 4.1 – Custom Install

Name: OD 4.1 - Custom Install
Brand: Focal
SKU: 66934
Availability: InStock

$3,999.00

people are viewing this right now

Bring premium sound outdoors with the OD 4.1 Custom Install system, designed to turn your garden, patio, or poolside into an immersive listening space. Featuring four refined OD Sat 5 speakers and the powerful OD Sub 12 subwoofer, this system delivers clear, detailed highs, rich mids, and deep, controlled bass—all while blending beautifully into your surroundings. Built to withstand the elements, it lets you enjoy breathtaking sound year-round, without compromising on style or performance.

This package includes two pairs of OD Sat 5 outdoor speakers and the OD Sub 12 outdoor subwoofer.

Chat with our specialist

Available with Professional installation in NY, NJ, and CT – Powered by Sound Waves .

Overview

Key Features

Elegant, discreet design that blends seamlessly into outdoor landscapes

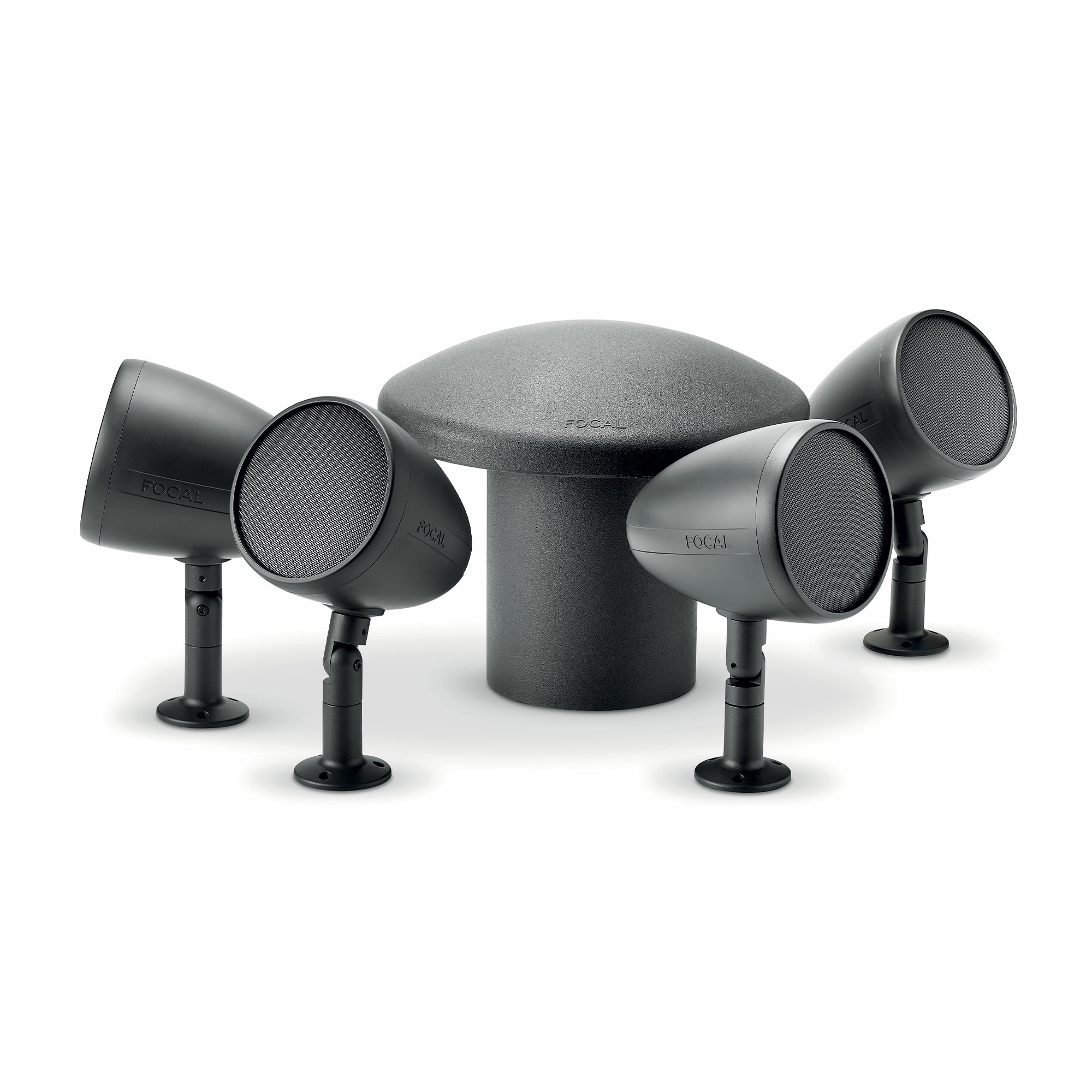

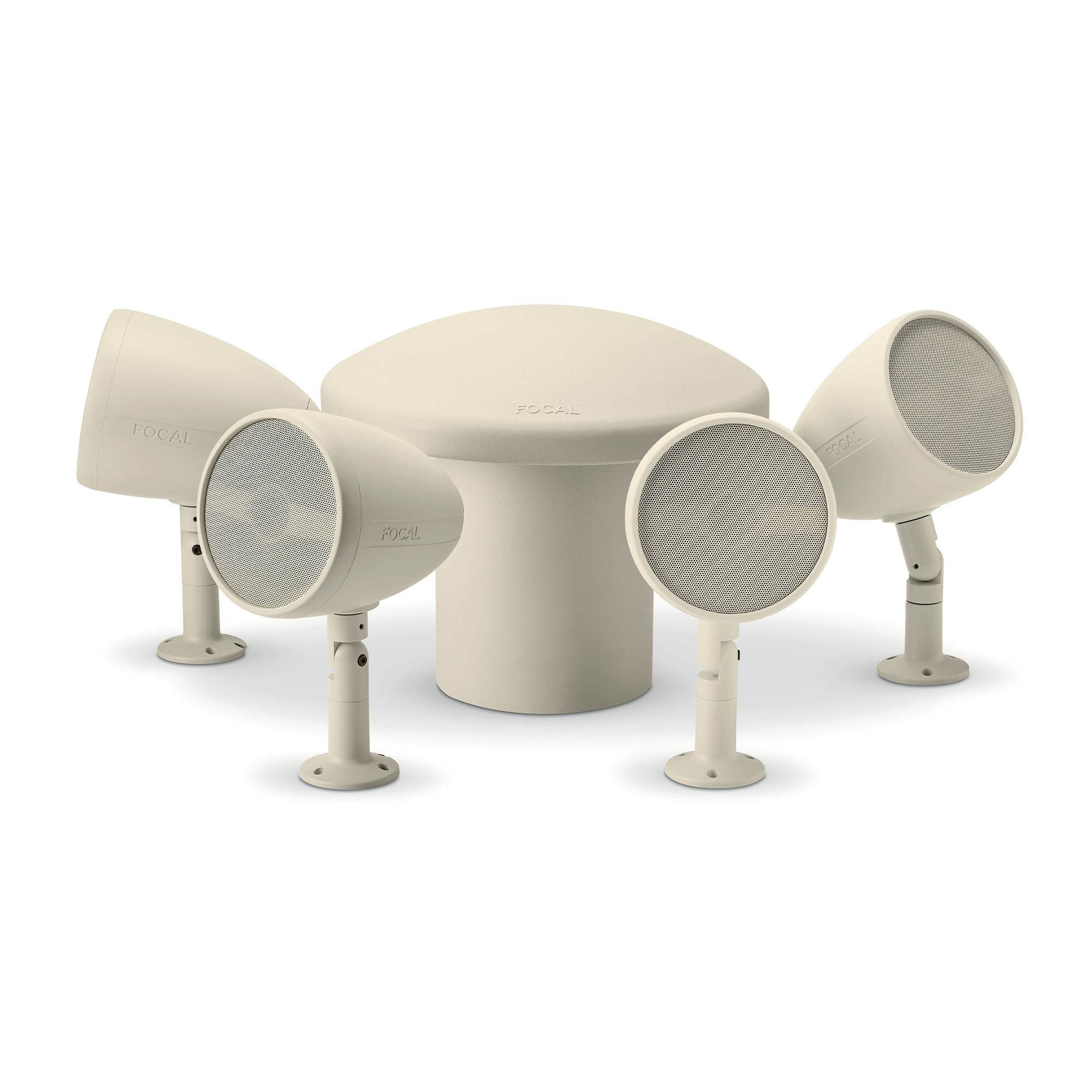

Complete 4.1 outdoor audio system: 4 × OD Sat 5 speakers + 1 × OD Sub 12 subwoofer
Premium sound performance with clear highs, balanced mids, and deep bass
Weather-resistant IP55 certification (water & dust protection)
Designed for long-term outdoor durability with anti-UV treatment
Supplied mounting brackets for in-ground and/or in-wall installation
8Ω and 70V/100V compatibility for flexible system design
Ideal for gardens, patios, terraces, pool areas, and large outdoor spaces

What’s Included

2 pairs (4 units) of OD Sat 5 outdoor loudspeakers
1 × OD Sub 12 outdoor subwoofer
Installation brackets and hardware

Specifications

OD Sat 5 Outdoor Loudspeaker

Sound - Acoustics

Drivers	5" (12.7 cm) midbass with Iris IP cone 1" (2.5 cm) Aluminium ‘M’-shaped inverted dome tweeter
Frequency response	90 Hz – 28 kHz
Impedance	8 Ω
Minimum impedance	5.2 Ω @ 250 Hz
Sensitivity	88 dB
Power handling	50 W RMS 100 W peak
Recommended amplifier power	20 W – 100 W (8 Ω)
Transformer settings	70V / 100V – 5W, 10W, 20W, 40W
Coverage angle	90°

Design

IP rating	IP55
Operating temperature	-20°C to +65°C
Dimensions (W × D × H)	32 × 32 × 21 cm
Weight	2.5 kg

OD Sub 12 Outdoor Subwoofer

Sound - Acoustics

Driver	12" (30 cm) woofer with Iris IP cone
Frequency response	40 Hz – 120 Hz
Impedance	6 Ω
Minimum impedance	5 Ω @ 55 Hz
Sensitivity	90 dB
Power handling	100 W RMS 400 W peak
Recommended amplifier power	50 W – 300 W (8 Ω)

Design

Design	Partially buriable with adjustable vent height
IP rating	IP55
Operating temperature	-20°C to +65°C
Dimensions (W × D × H)	38 × 92 × 56 cm
Weight	19 kg
