Direct-Drive Turntable (Analog, Wireless & USB)

Name: Direct-Drive Turntable (Analog, Wireless &amp; USB)
Brand: Audio Technica
SKU: AT-LP120XBT-USB-BK
Availability: InStock

$449.00

people are viewing this right now

The AT-LP120XBT-USB is a fully manual turntable that combines classic analog playback with modern connectivity. Featuring a DC servo direct-drive motor and adjustable anti-skate control, it supports 33⅓, 45, and 78 RPM records for versatile listening. It offers multiple output options, including RCA with a built-in phono preamp, USB for digitizing vinyl, and Bluetooth® for wireless playback, including support for aptX™ audio. Equipped with an S-shaped tonearm and AT-VM95E cartridge, it delivers precise tracking and clear sound. Additional features like pitch control, strobe indicator, and removable dust cover enhance usability and performance.

Chat with our specialist

Available with Professional installation in NY, NJ, and CT – Powered by Sound Waves .

Overview

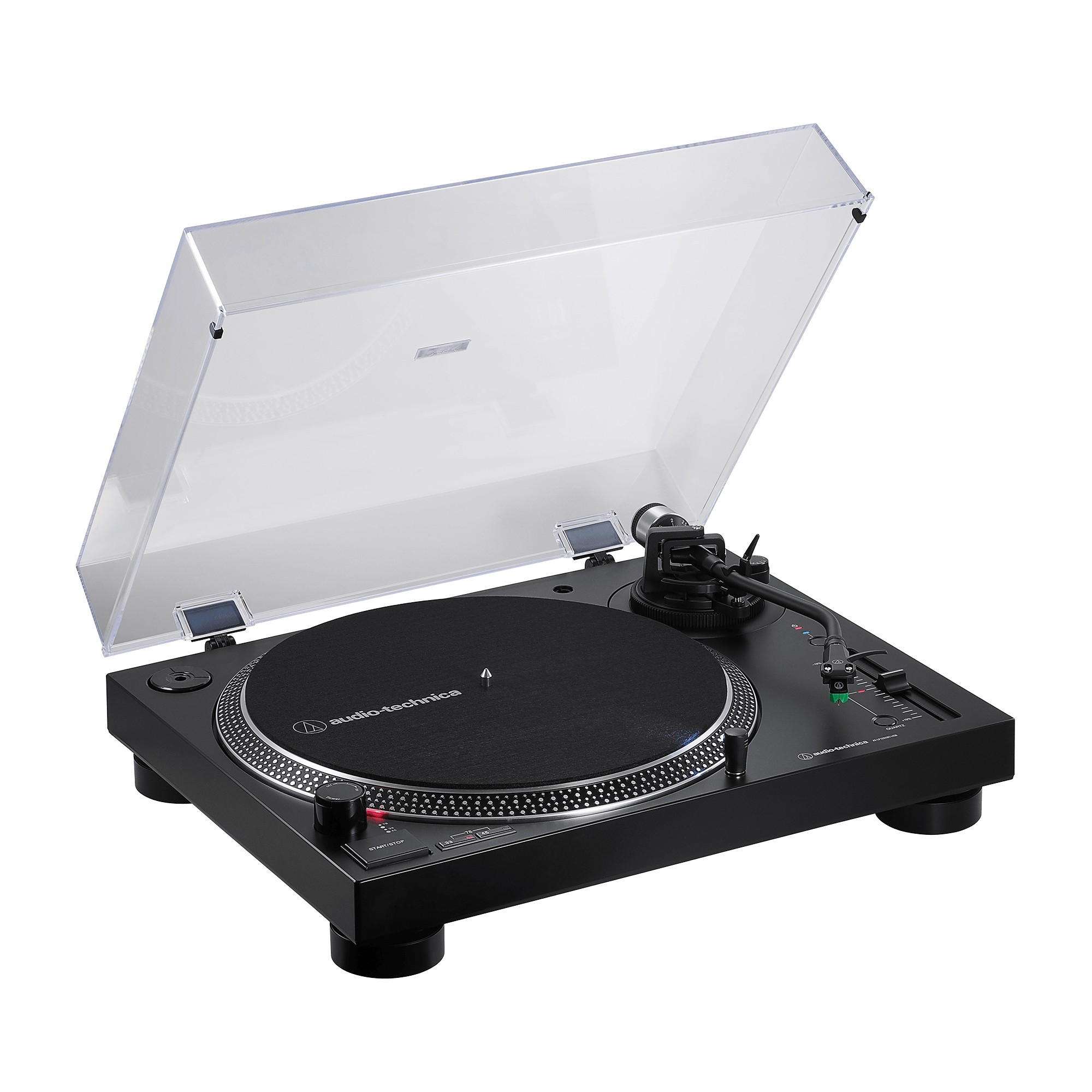

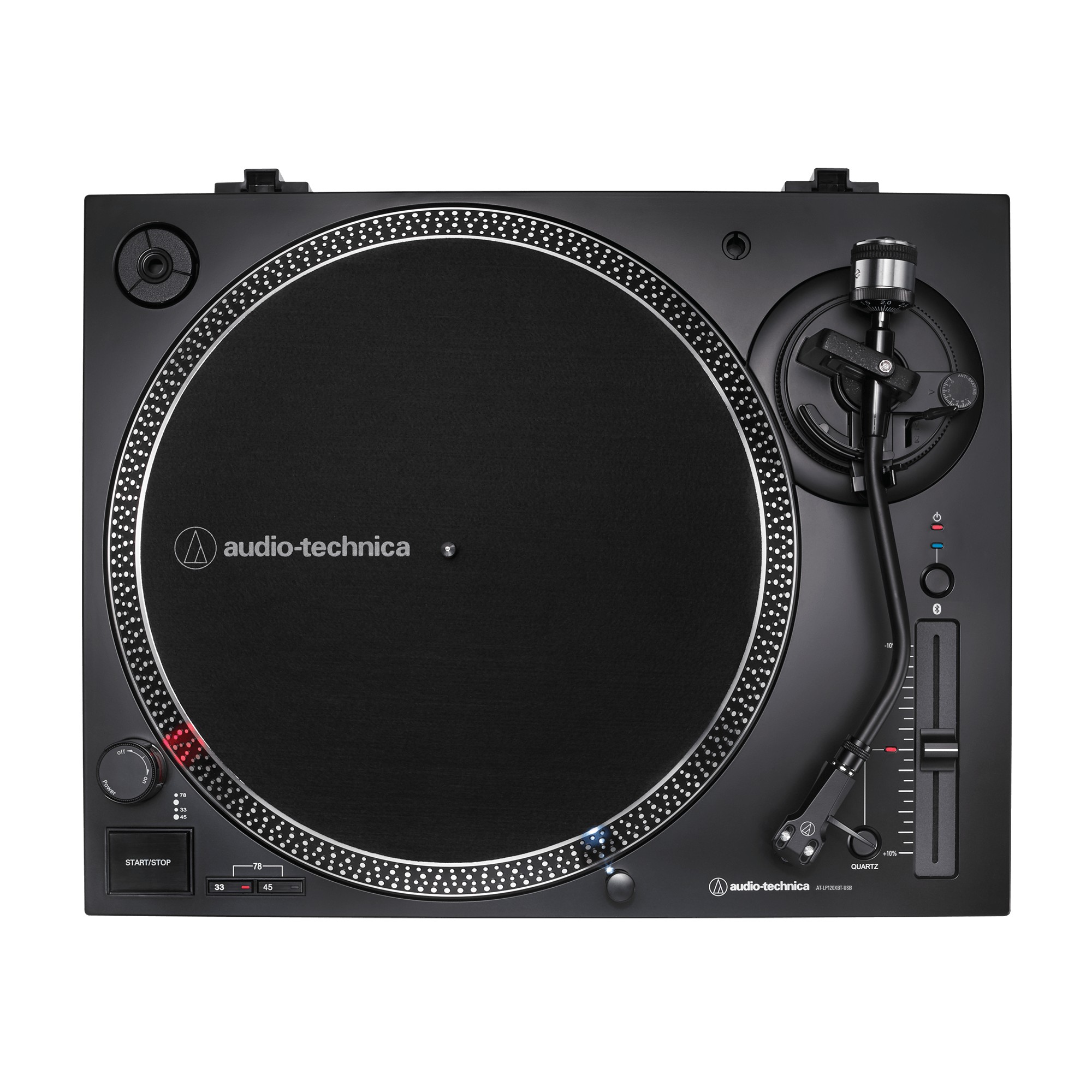

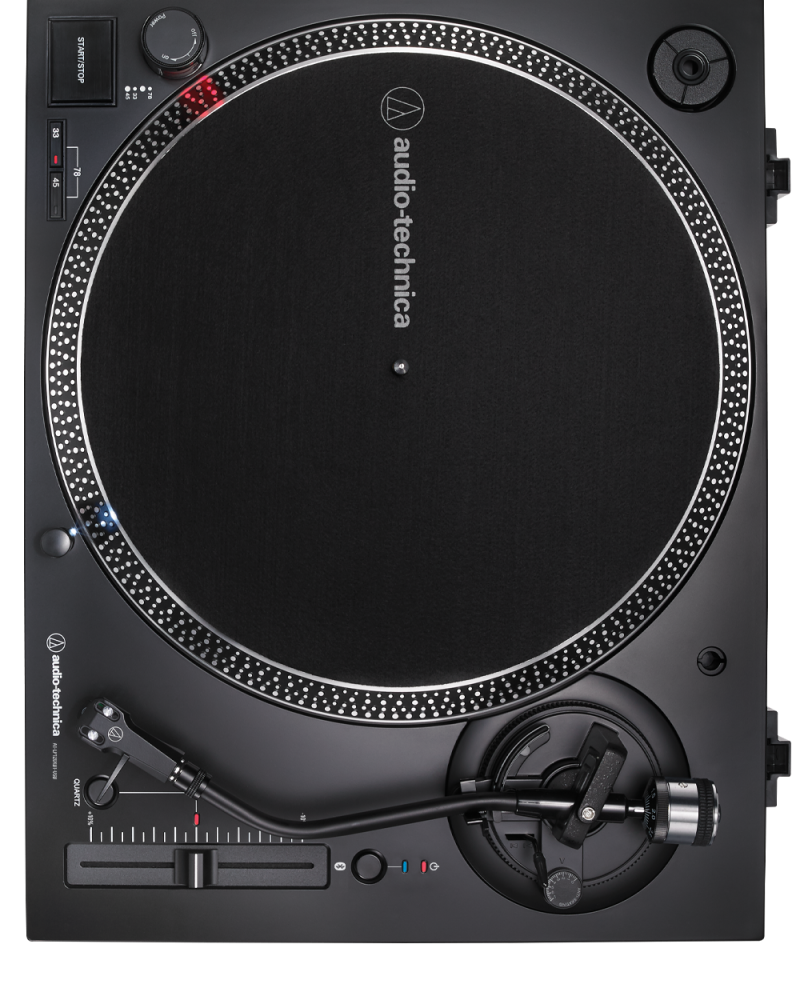

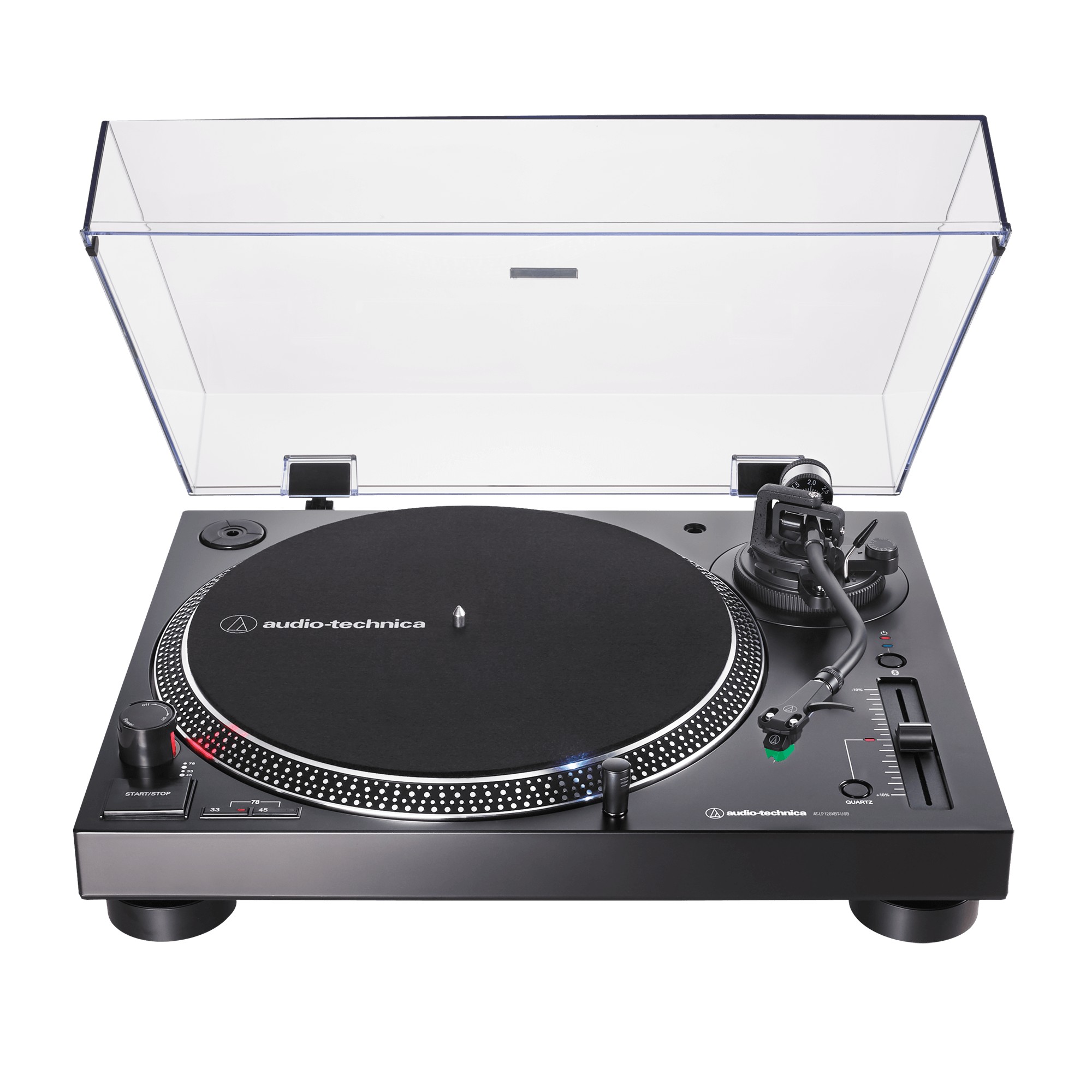

This fully manual turntable is modeled after the AT-LP120XUSB, but adds the convenience of Bluetooth® wireless connectivity to the existing analog and USB outputs.

Featuring a specially designed DC servo direct-drive motor and adjustable dynamic anti-skate control, the AT-LP120XBT-USB plays 33-1/3, 45, and 78 RPM records and outputs the high-fidelity audio to the device of your choice. Use the included RCA output cable along with the built-in selectable phono preamp to connect to your home stereo or powered speakers. Use the USB cable to connect to your computer and then download the free Mac- and PC-compatible Audacity recording software, or software of your choice, to start converting your records to digital audio files. Or use the Bluetooth wireless technology to pair the turntable with wireless speakers, headphones or other devices, including those that support the high-quality Qualcomm® aptX™ audio codec.

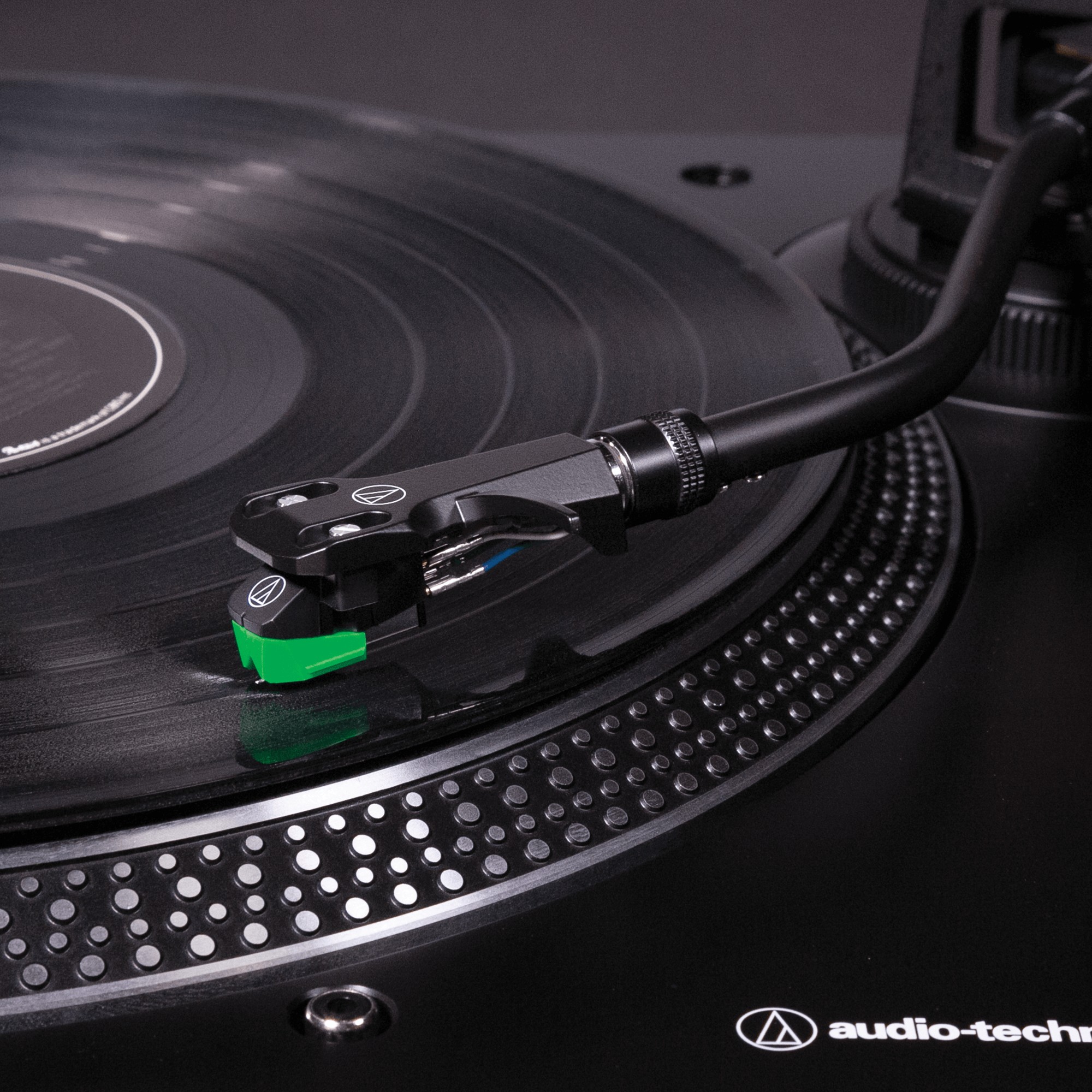

The turntable also features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½”- mount headshell with an AT-VM95E Dual Moving Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E. The cartridge comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Additional professional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-10% adjustment range; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.

Features

High-fidelity audio with Bluetooth® wireless technology
Direct-drive, DC servo motor
Fully manual operation
Adjustable dynamic anti-skate control
Selectable 33/45/78 RPM speeds
Anti-resonance, die-cast aluminum platter with felt mat
AT-HS6 universal ½”-mount headshell and AT-VM95E Dual Moving Magnet™ phono cartridge with 0.3 x 0.7 mil elliptical stylus
AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology, to wired audio systems and powered speakers via included dual RCA output cable, or to computers via included USB cable
Compatible with the high-quality Qualcomm® aptX™ audio codec
Built-in switchable phono preamplifier for phono- or line-level output
Stroboscopic platter with speed indicator
Variable pitch control with quartz speed lock
Removable plug-type target light for easier cueing in low light
Damped base construction for reduced low-frequency feedback coloration
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)

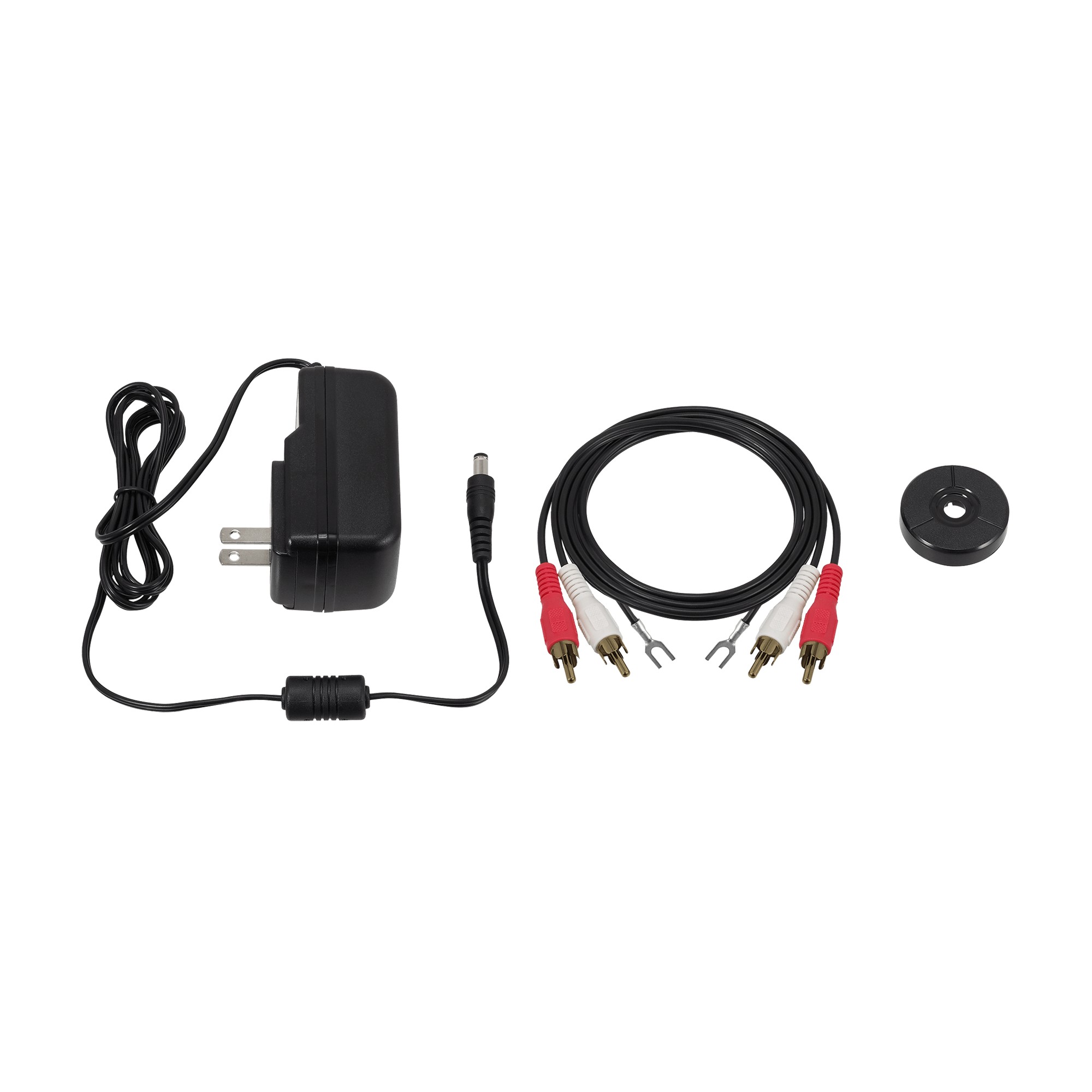

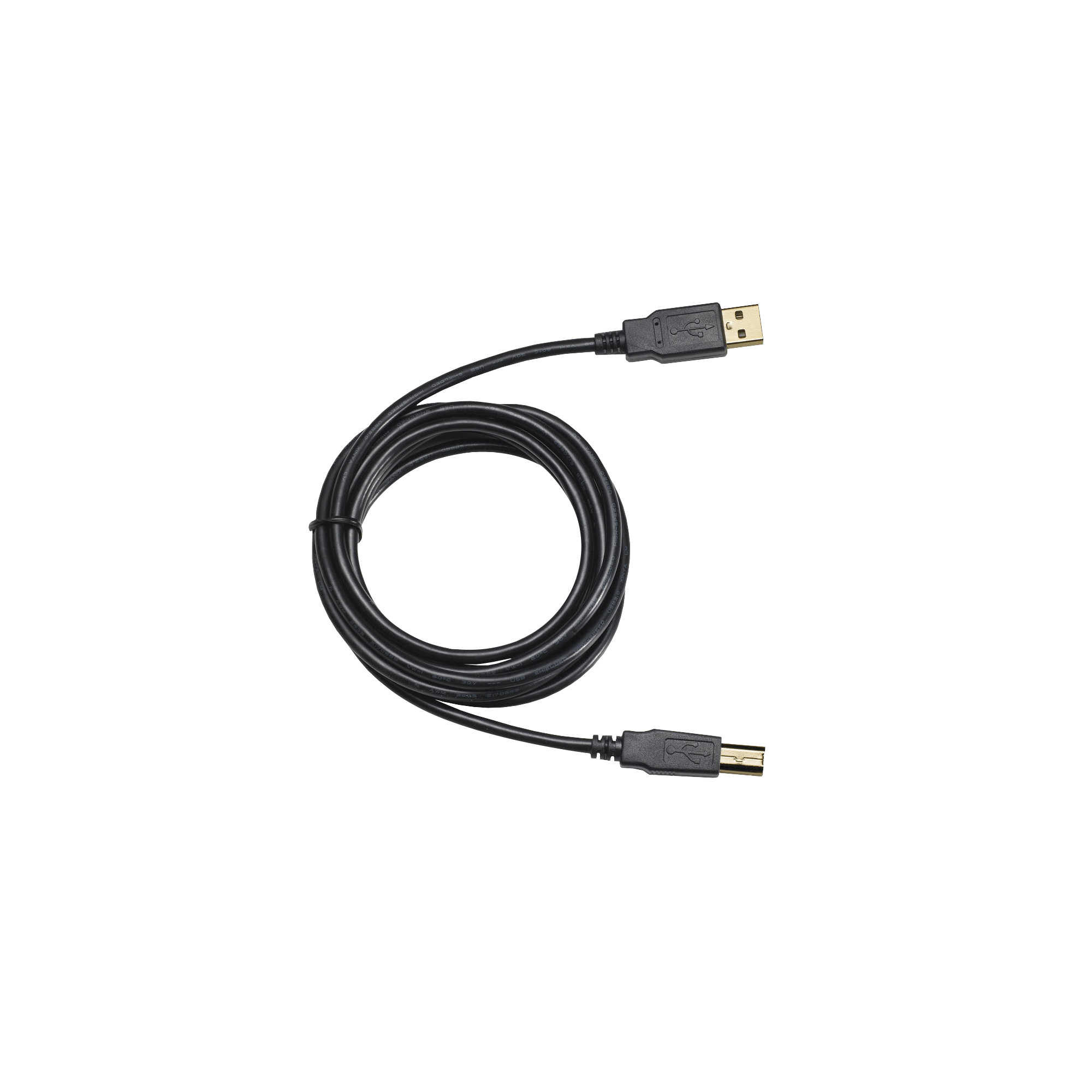

Includes: USB cable, detachable RCA output cable (dual RCA male to dual RCA male), AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover

Wireless, USB or Analog Connection

Connect to wireless speakers and headphones, computers, home stereos, and more. The AT-LP120XBT-USB features Bluetooth wireless technology, a USB cable, and a dual RCA output cable to give you a wide variety of listening options.

High-Fidelity Home Audio

With its professional features and controls, the AT-LP120XBT-USB lets you shape your high-fidelity listening experience.

Over 60 Years of Analog Excellence

We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Specifications

Turntable

Type	3-speed, fully manual operation
Motor	DC servo motor
Drive method	Direct drive
Speeds	33-1/3, 45, 78 RPM
Platter	Die-cast aluminum
Starting torque	>1.0 kgf.cm
Braking system	Electronic brake
Wow & flutter	<0.2% (WTD) @ 3 kHz (JIS)
Signal-to-noise ratio	>50 dB
Output level	PHONO: 4 mV @ 1 kHz, 5 cm/sec LINE: 240 mV @ 1 kHz, 5 cm/sec
Phono preamp gain	36 dB nominal, RIAA equalized
USB function	A/D, D/A – 16-bit / 44.1 or 48 kHz USB 2.0 compatible (Windows 7+ / macOS)
Power supply	100–240 V, 50/60 Hz, 1.5 A max
Power consumption	2.75 W
Dimensions	452 × 352 × 141.6 mm (W × D × H)
Weight	8 kg (without dust cover)

Tonearm

Type	Balanced S-shaped tonearm, detachable headshell
Effective length	230.5 mm
Overhang	16 mm
Tracking error angle	< 3°
Cartridge weight range	3.5 – 8.5 g
Anti-skating range	0 – 4 g
Replacement stylus	AT-VMN95E
