100 IWLCR5 – D’appolito 2-way wall-mounted speaker

$599.00
people are viewing this right now

The 100 IWLCR5 is a compact integrated LCR (left, center, right) speaker designed primarily for home theater installations while remaining suitable for other rooms in the home. Its Appolito configuration places the tweeter between two 13 cm Polyglass bass-midrange drivers, improving power handling and sound direction. An adjustable inverted dome tweeter and dedicated correctors help balance high and mid frequencies for clear, precise audio. The speaker can be installed horizontally for home cinema setups, with a three-position switch to select left, center, or right channels. Its shallow depth and paintable magnetic grille allow discreet wall integration.

Chat with our specialist

Available with Professional installation in NY, NJ, and CT – Powered by Sound Waves .

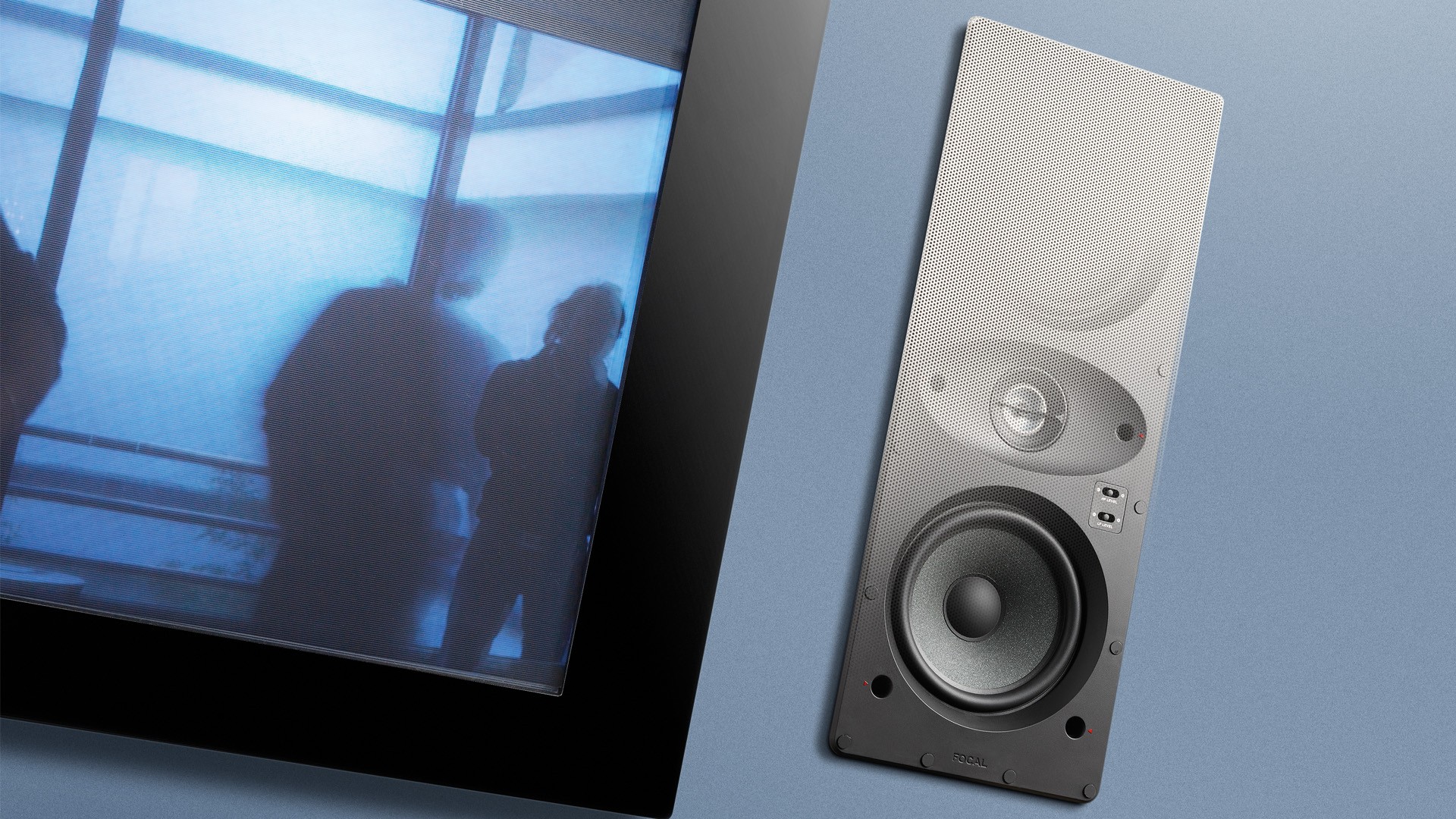

Focal 100 IWLCR5 Precise Acoustics

High-Definition In-Wall Audio

The 100 IWLCR5 is a powerhouse of precision, featuring dual 13 cm Polyglass drivers and an adjustable inverted dome tweeter designed to deliver a perfectly defined midrange and crystal-clear highs.

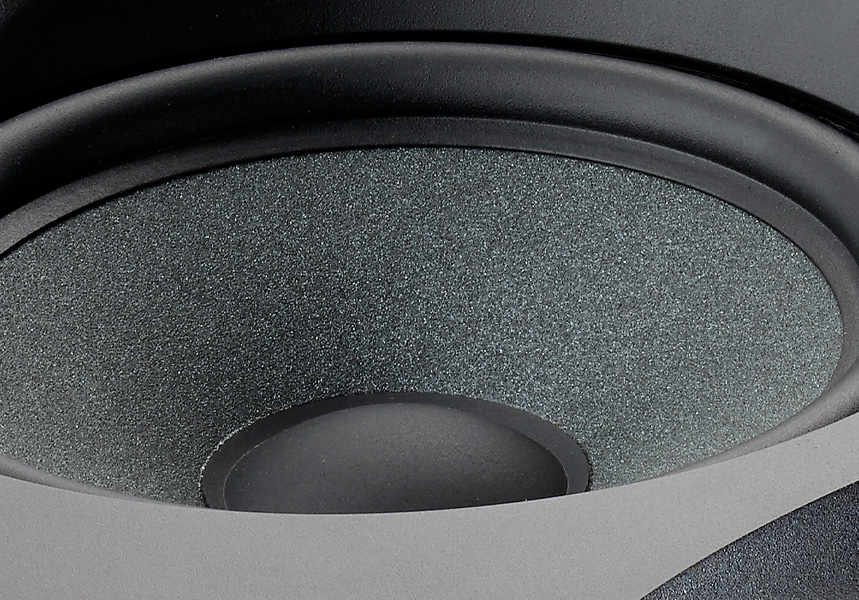

Focal 100 IWLCR5 Horizontal Performance

LCR Versatility

Horizontal or Vertical: Specifically designed for Home Cinema, this loudspeaker can be oriented horizontally as a center channel or vertically as a left/right main.

Tonal Balance Switch: A three-position selector allows you to define its role (Left, Center, or Right), ensuring a consistent tonal signature across your entire front soundstage.

Acoustic Correction: Onboard correctors equalize high and mid frequencies to provide an appropriate response regardless of your room’s layout.

Design and Discretion

Ultra-Shallow Depth: Engineered to fit into shallow wall cavities without compromising its high-fidelity output.

Seamless Aesthetics: The magnetic, ultra-thin grille is ready-to-paint, allowing the 100 IWLCR5 to blend invisibly into any interior design.

Easy Installation: Features the optimized 100 Series mounting system for a secure and vibration-free fit in minutes.

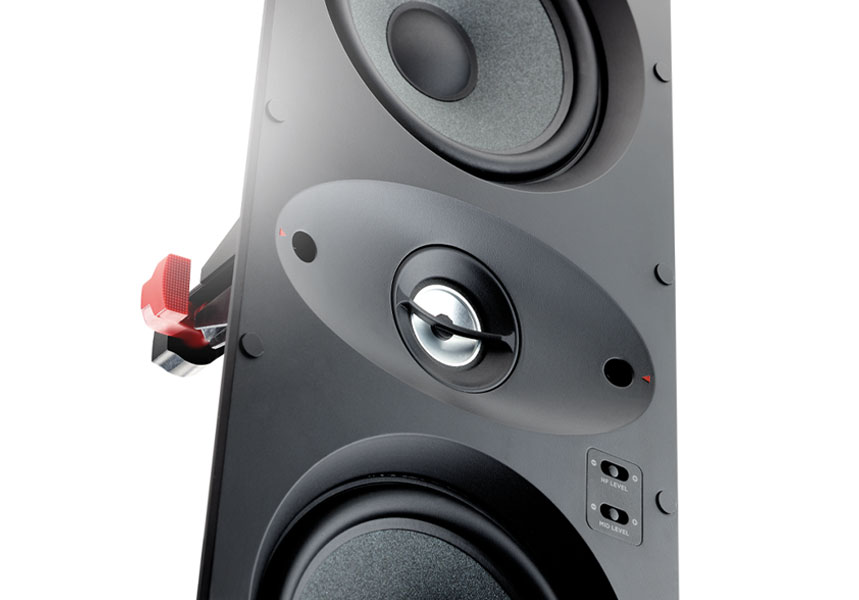

Focal 100 IWLCR5 Installation

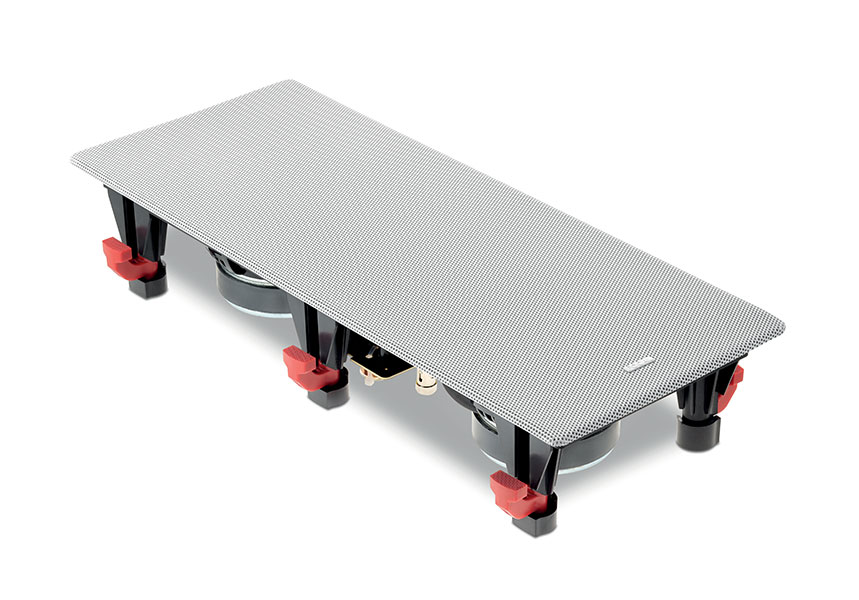

Focal 100 IWLCR5 Lifestyle Integration

Design

Height 86 mm / 3.37 in
Width 440 mm / 17.31 in
Depth 173 mm / 6.81 in
Weight 2.9 kg
Minimum allowable ceiling thickness 8 mm / 0.3125 in
Maximum allowable ceiling thickness 35 mm / 1.37 in
Depth behind surface (Mounting depth) 3.25 in

Sound - Acoustics

Product type 2-way Appolito wall
Membrane Polyglass
Medium 2 x 5" (13 cm) Polyglass Midbass
Response at -6 dB (Low frequency point) 43 Hz
Frequency response (+/- 3 dB) 55 Hz - 23 kHz
Minimum impedance 3.8 Ω
Nominal impedance 8 Ω
Recommended amplifier power 25 - 120 W
Sensitivity 90.5 dB

Included Accessories

Black and white felt Black and white felt ready to stick
Cut Out template Yes
Grilles Ready-to-paint grille
