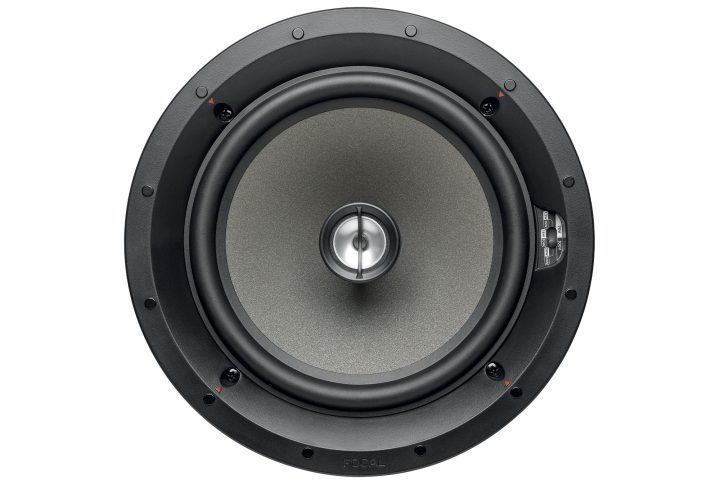

100 ICW8-T – 2-way Coaxial Speaker
The 100 ICW8-T is a wall and ceiling speaker designed for large public spaces such as hotels, restaurants, and shops. It features a 21 cm Polyglass driver that delivers natural mids and rich bass, while its low directivity helps eliminate the “shower effect” for more even sound coverage. An aluminum inverted dome tweeter provides smooth highs and wide sound dispersion. Like all 100-T Series models, it includes an adjustable transformer for 70V/100V installations, allowing multiple speakers to be connected for large-area coverage. Its shallow mounting depth, optimized brackets, and paintable grilles ensure easy installation and discreet integration.
Available with Professional installation in NY, NJ, and CT – Powered by Sound Waves .
Vast Spaces
An adjustable transformer adapts the loudspeaker’s power output, allowing it to be daisy-chained to other loudspeakers in an installation. Clarity and vocal intelligibility are guaranteed in large listening spaces, while minimizing the number of amplification channels.
Focal Know-How
The Polyglass diaphragm of the 21 cm loudspeaker delivers a natural, uncolored midrange and rich bass. It is combined with an aluminum inverted dome tweeter for silky treble and optimum sound dispersion.
Compact and Discreet
Compactness and shallow integration depth are the hallmarks of these In-ceiling loudspeakers. Discreet and easy to install, they come with optimized grip mounting brackets and ready-to-paint round or square grilles.
Design
| Depth | 111 mm / 4.37 in |
| Minimum allowable ceiling thickness | 8 mm / 0.3125 in |
| Maximum allowable ceiling thickness | 40 mm / 1.56 in |
| Cut-Out diameter | 224 mm / 8.81 in |
| Depth behind surface (Mounting depth) | 4.25 in |
Sound - Acoustics
| Product type | Wall / Ceiling - 2 Coxial channels for installation on line 70V / 100V |
| Membrane | Polyglass |
| Medium | 8" (21 cm) Polyglass Midbass |
| Response at -6 dB (Low frequency point) | 40 Hz |
| Frequency response (+/- 3 dB) | 53 Hz - 23 kHz |
| Sensitivity | 90 dB |
Included Accessories
| Cut Out template | Yes |
| Grilles | Ready-to-paint grille |
| Sling | Yes |
