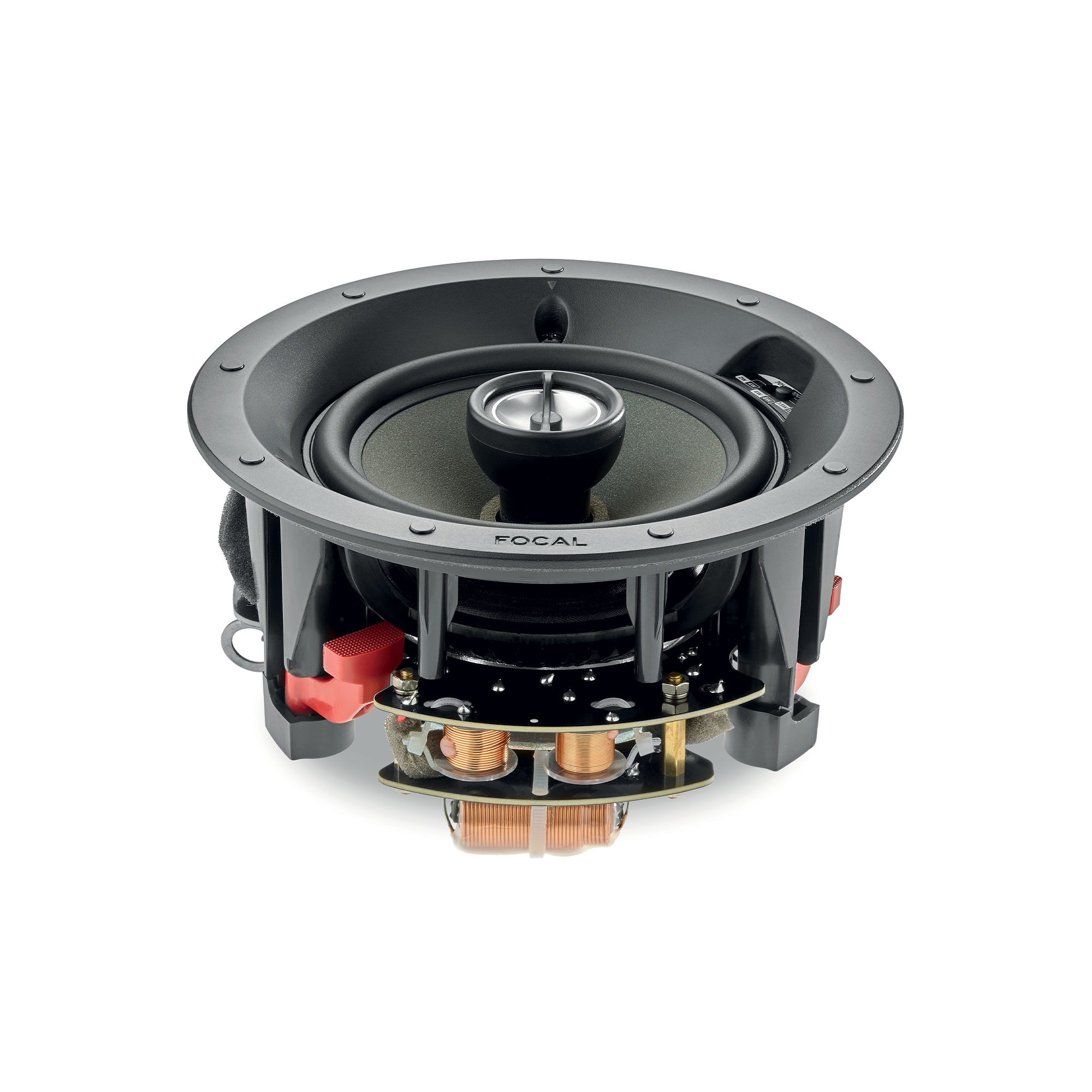

100 ICW5-T – 2-way Coaxial Speaker

Name: 100 ICW5-T - 2-way Coaxial Speaker
Brand: Focal
SKU: FOAOPAIC5T0B000
Availability: InStock

$329.00

people are viewing this right now

The 100-T Series integrated wall and ceiling speaker is designed for sound reinforcement in large spaces such as hotels, restaurants, and other public areas. Its built-in adjustable transformer supports 70V/100V installations, allowing multiple speakers to be connected together to cover wide listening areas while reducing the number of amplification channels required. Equipped with a 13 cm Polyglass driver and an aluminum inverted dome tweeter, it delivers clear mids, rich bass, and smooth treble for hi-fi sound quality. Its compact design, shallow mounting depth, optimized mounting brackets, and paintable grille ensure easy installation and discreet integration.

Chat with our specialist

Available with Professional installation in NY, NJ, and CT – Powered by Sound Waves .

Overview

Large Listening Areas

100 Series loudspeakers incorporate a transformer that adapts the power of the loudspeakers, enabling them to be chained together in a 70V/100V installation, ideal for public areas (hotels, restaurants, etc.). They guarantee quality sound while minimizing the number of amplification channels required.

Focal Know-How

The loudspeakers’ Polyglass membrane delivers a natural, uncolored midrange and rich bass. This is combined with an aluminum inverted dome tweeter for silky treble and optimum sound dispersion.

Musicality and Discretion

Compactness and shallow mounting depth characterize the 100 Series loudspeakers for discreet integration. Installation is made easy thanks to mounting brackets with optimized grip and ready-to-paint grilles.

Specifications

Design

Depth	100 mm / 4 in
Minimum allowable ceiling thickness	8 mm / 0.3125 in
Maximum allowable ceiling thickness	35 mm / 1.37 in
Cut-Out diameter	157 mm / 6.19 in
Depth behind surface (Mounting depth)	3.75 in

Sound - Acoustics

Product type	Wall / Ceiling - 2 Coxial channels for installation on line 70V / 100V
Membrane	Polyglass
Medium	5" (13 cm) Polyglass Midbass
Response at -6 dB (Low frequency point)	56 Hz
Frequency response (+/- 3 dB)	65 Hz - 23 kHz
Sensitivity	88 dB
