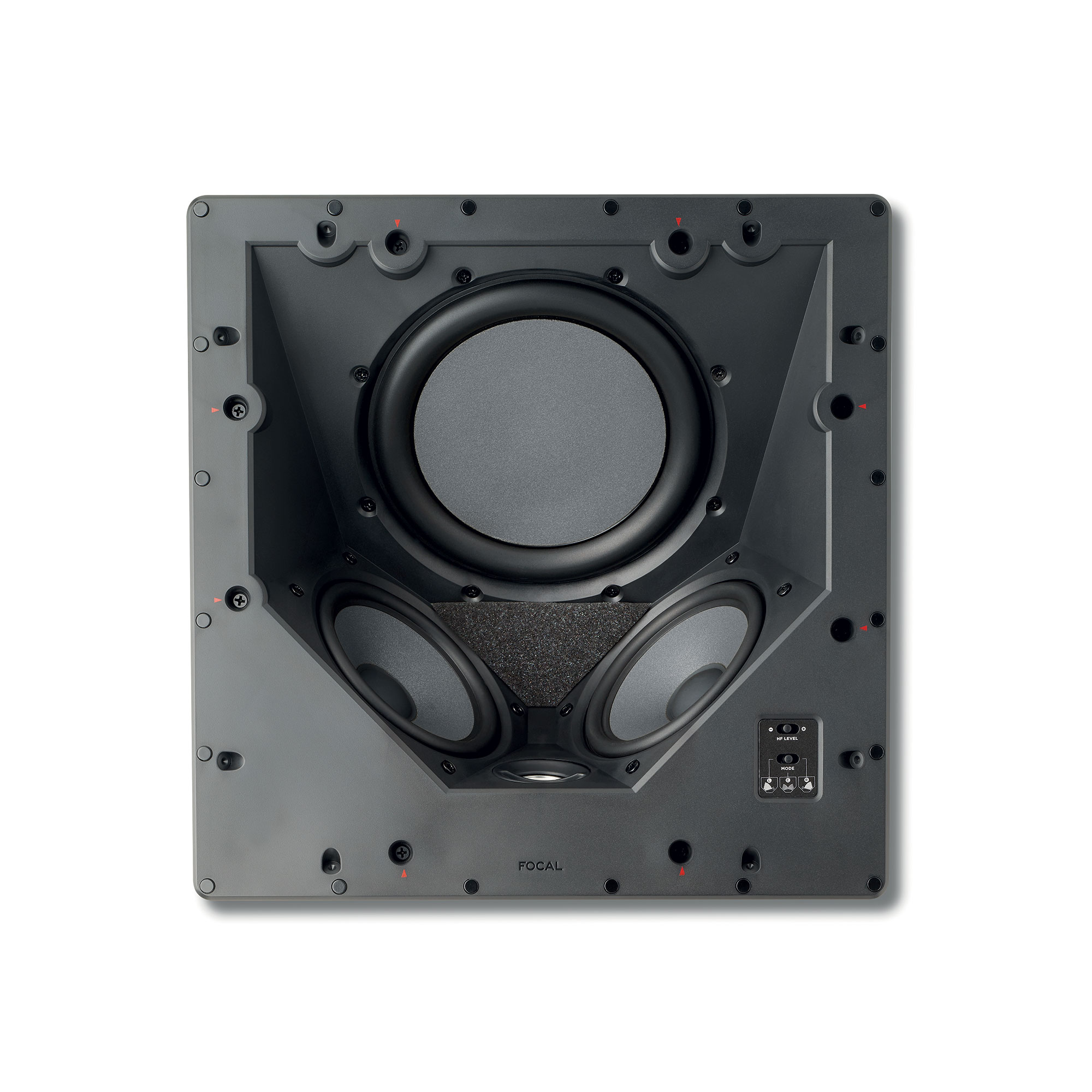

100 ICLCR5 – 2-way ceiling speaker
The 100 ICLCR5 is a compact, high-performance in-ceiling speaker designed to enhance home theater installations. It works seamlessly with conventional or wall-mounted speakers and is especially useful in large rooms where the listening area has no rear wall. The speaker supports five in-ceiling configurations, allowing it to function as front left, center, right, or rear surround channels. Equipped with two 13 cm Polyglass cone drivers and a 20° adjustable tweeter, it delivers smooth treble and clear midrange. A dedicated left, center, and right selector helps maintain balanced sound regardless of the listening position.
Available with Professional installation in NY, NJ, and CT – Powered by Sound Waves .
Versatile Home Cinema Integration
Designed for total flexibility, the 100 ICLCR5 is the perfect all-in-one solution. It can be utilized for five distinct in-ceiling applications: as front left, center, or right channels, or as rear left and right surround channels.

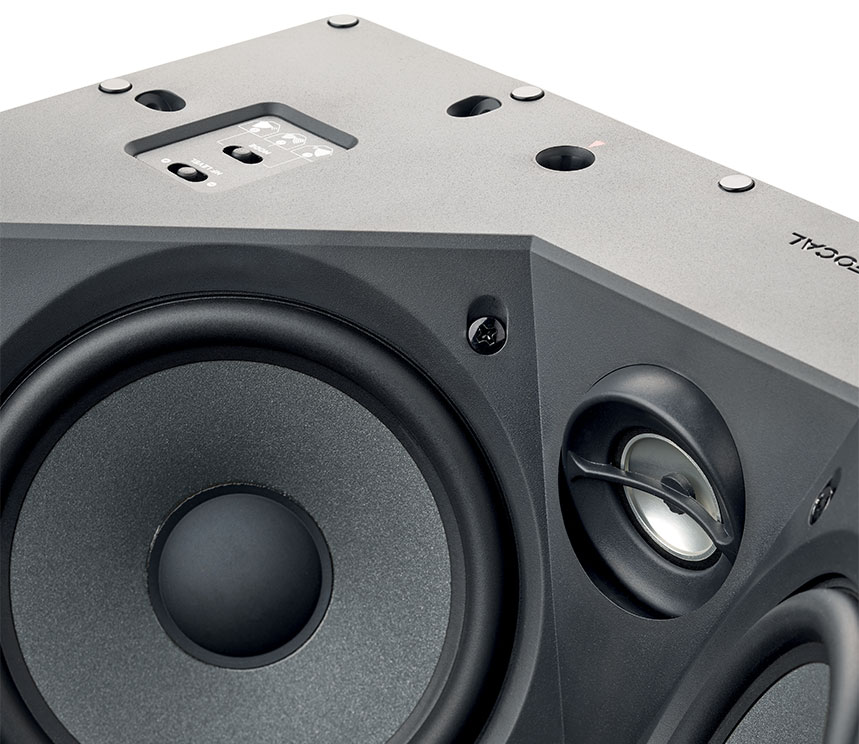

Precision Sound Balance
Dual Polyglass Drivers: Equipped with two 13cm Polyglass cone drivers that deliver a defined midrange and punchy, controlled bass.
Adjustable Tweeter: The tweeter can be oriented up to 20° toward the listening area, ensuring crystal-clear treble regardless of ceiling height.
LCR Selector: A dedicated left, center, and right channel selector ensures the acoustic output is perfectly balanced for its specific role in your theater setup.
Advanced Acoustic Tuning
Three-Position Treble: Fine-tune the high frequencies with a toggle for -3 dB, 0 dB, or +3 dB to compensate for “live” or “dead” room acoustics.
Directionality Control: Three-position correctors adapt the directionality curve, ensuring that every seat in the room experiences the same high-fidelity soundstage.
Discreet Architecture: Despite its powerful dual-driver configuration, the speaker remains visually unobtrusive with its slim-profile magnetic grille.
Design
| Height | 354 mm / 13.94 in |
| Width | 354 mm / 13.94 in |
| Depth | 150 mm / 5.83 in |
| Weight | 5.3 kg |
| Minimum allowable ceiling thickness | 8 mm / 0.3125 in |
| Maximum allowable ceiling thickness | 60 mm / 2.37 in |
| Mounting height | 328 mm / 12.4 in |
| Mounting width | 328 mm / 12.94 in |
| Depth behind surface (Mounting depth) | 6 in |
Sound - Acoustics
| Product type | 2-way ceiling |
| Membrane | Polyglass |
| Medium | 2 x 5" (13 cm) Polyglass Midbass |
| Response at -6 dB (Low frequency point) | 55 Hz |
| Frequency response (+/- 3 dB) | 65 Hz - 23 kHz |
| Minimum impedance | 4.6 Ω |
| Nominal impedance | 8 Ω |
| Recommended amplifier power | 25 - 120 W |
| Sensitivity | 92 dB |
Included Accessories
| Black and white felt | Black and white felt ready to stick |
| Cut Out template | Yes |
| Grilles | Supplied with a magnetic grille and ready to paint to ensure perfect integration |
